Key facts
- Brand
- STMicroelectronics
- Model
- ST7265x
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-07
Start here

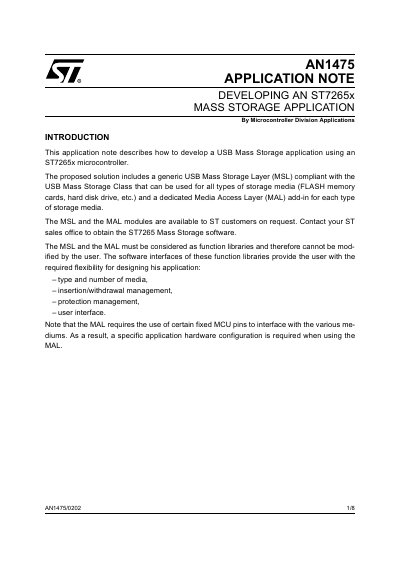

AN1475 Developing an ST7265x Mass Storage Application
The document describes a solution for developing a USB Mass Storage application on the ST7265x microcontroller. It includes a generic USB Mass Storage Layer (MSL) compliant with the USB Mass Storage Class and dedicated Media Access Layer (MAL) add-ins for various storage media types such as Flash memory cards, hard disk drives, CompactFlash, SmartMedia, MultiMediaCard, and Sony Stick.
The software architecture is modular to allow users to easily replace or customize modules. The note details the project file structure, defines the maximum number of logical units (LUNs), and provides specific instructions on media selection and hardware interface pin configurations for different storage devices.
STMicroelectronics ST7265x specifications
| Program Memory | Up to 32K Flash or ROM |
|---|---|
| User RAM | Up to 5 Kbytes |
| Operating Voltage | 4.0V to 5.5V |
| Operating Temperature | 0°C to +70°C |
Source: STMicroelectronics ST7265x Low-Power Full-Speed USB 8-Bit MCU Datasheet
All STMicroelectronics ST7265x documents by type
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the valid range for the MAX_LUN variable?
The valid range of this variable is between 0 and 15.
What is the valid range for the MAX_LUN constant?
The valid range for the MAX_LUN variable is between 0 and 15.
What is the maximum program memory size for ST7265x devices?
The device supports up to 32K of ROM or High Density Flash (HD-Flash) program memory.
From: STMicroelectronics ST7265x Low-Power Full-Speed USB 8-Bit MCU Datasheet
Does the ST7265x support In-Circuit Programming?
Yes, HDFlash devices support In-Circuit programming (ICP).
From: STMicroelectronics ST7265x Low-Power Full-Speed USB 8-Bit MCU Datasheet
