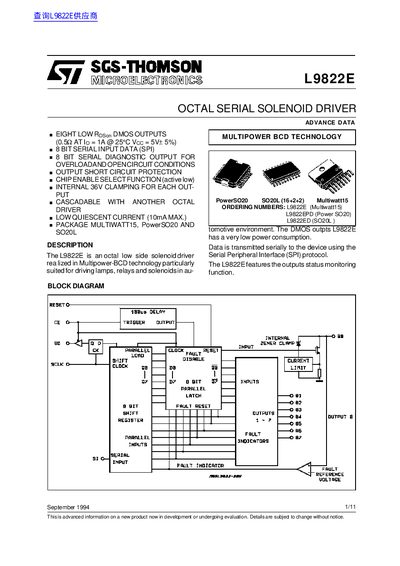

The L9822E is an octal low side solenoid driver, realized in Multipower-BCD technology, particularly suited for driving lamps, relays and solenoids in automotive environment. The DMOS outpts L9822E has a very low power consumption. Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol. The L9822Efeatures the outputs status monitoring function.
The L9822E is an octal low-side solenoid driver realized in Multipower-BCD technology. It features eight low-side DMOS outputs with a nominal load current of 500mA and a minimum current limit of 1.05A, suitable for driving lamps, relays, and solenoids in automotive environments.
Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol. The driver includes output status monitoring via an 8-bit serial diagnostic output that reports overload and open-circuit conditions. Each output has internal clamping set at approximately 36V for recirculation of inductive load current.
| Output Clamping Voltage (Max) | 40 V |
|---|---|
| Nominal Load Current | 500mA |
| Operating Frequency (SPI) | 2 MHz |
| Output Clamping Energy | 20 mJ |
The nominal load current for these outputs is 500mA.
Each output has on-board clamps set at about 36V to clamp inductive load current.
Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol.
