- VIPER27LN
- Category
- Power Management
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-06
Start here

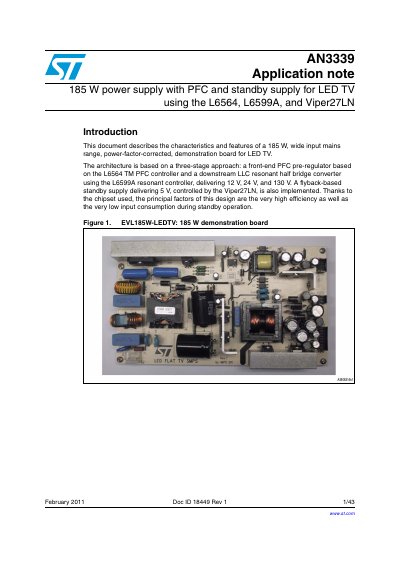

ST AN3339 Application note 185 W power supply with PFC standby supply for LED TV using the L6564 L6599A Viper27LN handbook
The document details the characteristics and features of an EVL185W-LEDTV demonstration board. The architecture employs a three-stage approach: a front-end PFC pre-regulator based on the L6564, a downstream LLC resonant half bridge converter using the L6599A delivering 12 V, 24 V, and 130 V outputs, and a flyback-based standby supply controlled by the Viper27LN.
Read onlineSTMicroelectronics VIPER27LN specifications
| Input mains range | 90 + 264 Vac - frequency 45 + 65 Hz |
|---|---|
| Output voltage 1 (Backlight) | 130 V +8 % at 620 mA |
| Output voltage 2 (Audio) | 24 V +8 % at 2 A |
| Output voltage 3 (Panel) | 12 V +1 % at 4 A |
| Output voltage 4 (Microprocessor) | 5 V +2 % at 2 A |
| Standby mains consumption | <170 mW at 230 Vac with 50 mW load |
| Overall efficiency | >90 % at full load |
