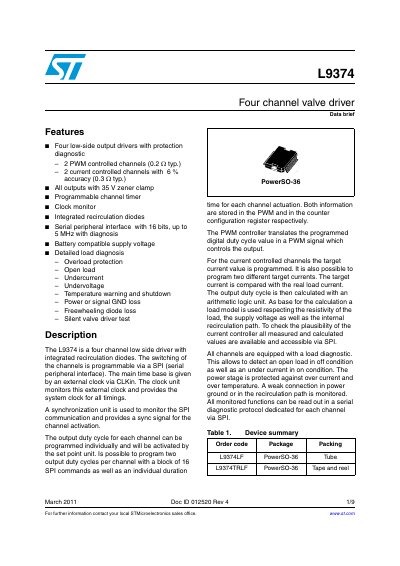

STMicroelectronics L9374 Four Channel Valve Driver Datasheet
The L9374 is a four-channel low-side driver with integrated recirculation diodes designed for valve control applications. The device features two PWM-controlled channels and two current-controlled channels, all equipped with protection and diagnostic capabilities. Switching is programmable via a Serial Peripheral Interface (SPI), and the main time base is provided by an external clock.
Read onlineSTMicroelectronics L9374 specifications
| Number of channels | Four |
|---|---|
| PWM controlled channels | 2 |
| Current controlled channels | 2 |
| Output resistance (typical) | 0.2 Ω |
| Current accuracy | 6 % |
| Supply voltage (max) | 38 V |
| Output voltage (max) | 35 V |
| Output current (Channel 1/2) | -4 A |
| Output current (Channel 3/4) | -2 A |
| SPI clock speed | up to 5 MHz |
| Package type | PowerSO-36 |
Source: STMicroelectronics L9374 Four Channel Valve Driver Datasheet
All STMicroelectronics L9374 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the L9374?
The L9374 is a four channel low side driver with integrated recirculation diodes.
From: STMicroelectronics L9374 Four Channel Valve Driver Datasheet
How is the L9374 programmed?
The switching of the channels is programmable via a SPI (serial peripheral interface).
From: STMicroelectronics L9374 Four Channel Valve Driver Datasheet
What is the accuracy of the L9374 current regulated channels?
The accuracy of the two current regulated channels in the L9374 is about 6%.
What microcontroller implements the virtual current control loop library?
The SW library for the virtual current control loop is implemented by the ST10252M microcontroller.
