R1516x series are CMOS-based voltage regulators featuring 150mA output current and 36V input voltage. In addition to a fold-back protection circuit built into conventional regulators, R1516x contains a thermal shutdown circuit. Besides the low supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 36V, the R1516x series are very suitable for use in digital home appliances. Compared to the same 150mA output R1514x Series, R1516x offers an excellent load transient response.

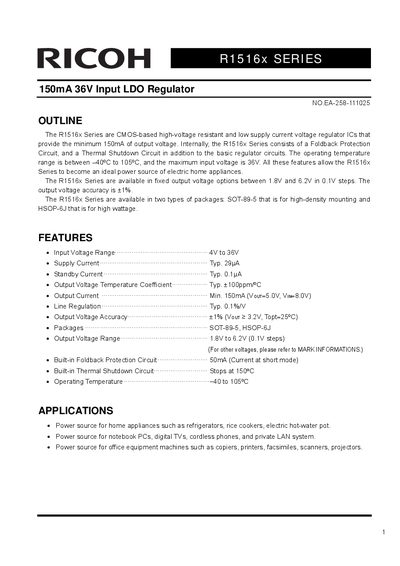

The R1516x Series are CMOS-based high-voltage resistant and low supply current voltage regulator ICs that provide a minimum of 150mA output. Internally, the series includes a Foldback Protection Circuit and a Thermal Shutdown Circuit in addition to basic regulator circuits. The operating temperature range is between -40°C to 105°C, with a maximum input voltage of 36V.
These regulators are available in fixed output voltage options ranging from 1.8V to 6.2V in 0.1V steps, with an output voltage accuracy of +1%. The series is offered in two package types: SOT-89-5 for high-density mounting and HSOP-6J for high wattage applications.
| Supply Current (Typ.) | 29uA |
|---|---|
| Output Voltage Accuracy | +/-1% |
| Operating Temperature Range | -40 to 105 °C |
| Input Voltage Range | -- ~ AV to 36V |
| Output Current (Min.) | 150mA |
The R1516x Series are available in fixed output voltage options between 1.8V and 6.2V in 0.1V steps.
The series is available in SOT-89-5 for high-density mounting and HSOP-6J for high wattage.
The R1516x Series includes a Foldback Protection Circuit and a Thermal Shutdown Circuit.
