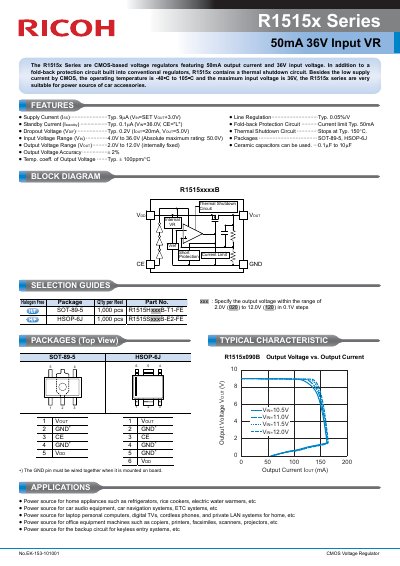

The R1515x Series are CMOS-based voltage regulators featuring 50mA output current and 36V input voltage. In addition to a fold-back protection circuit built into conventional regulators, R1515x contains a thermal shutdown circuit. Besides the low supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 36V, the R1515x series are very suitable for power source of car accessories.
The R1515x Series are CMOS-based voltage regulators designed with a 50mA output current and a maximum input voltage of 36V. The series includes built-in fold-back protection and a thermal shutdown circuit to prevent damage from overheating or short circuits, operating within an ambient temperature range of -40°C to 105°C.
| Output Current | 50mA |
|---|---|
| Input Voltage Range | 4.0V to 36.0V |
| Maximum Input Voltage | 50.0V |
| Output Voltage Range | OV to 12.0V |
| Operating Temperature | -40°C to 105°C |
| Thermal Shutdown Stop Temp | Typ. 150°C |
The absolute maximum rating for input voltage is 50V, with a peak input voltage of 60V.
Yes, it contains a thermal shutdown circuit that stops operation when the junction temperature exceeds 150°C.
