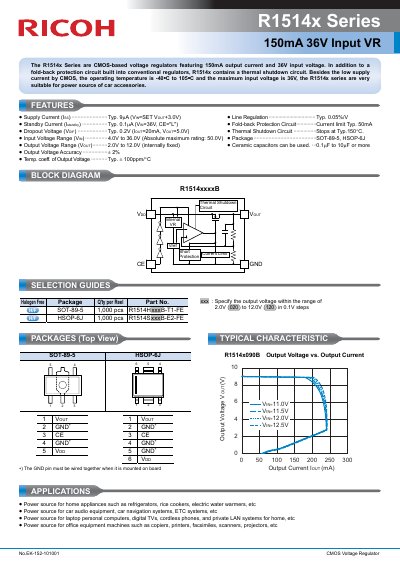

The R1514x series are CMOS-based voltage regulators featuring 150mA output current and 36V input voltage. In addition to a fold-back protection circuit built into conventional regulators, R1514x contains a thermal shutdown circuit. Besides the low supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 36V, the R1514x series are very suitable for power source of car accessories.
The R1514x Series are CMOS-based voltage regulators featuring a 150mA output current and a maximum input voltage of 36V. They include built-in fold-back protection and thermal shutdown circuits, with an operating temperature range from -40°C to 105°C.
| Output Current | 150mA |
|---|---|
| Input Voltage Range | -4.0V to 36.0V |
| Absolute Maximum Input Voltage | 50.0V |
| Operating Temperature Range | -40°C to 105°C |
| Thermal Shutdown Stop Temp. | Typ. 150°C |
| Output Voltage Accuracy | +/- 2% |
The typical standby current is 0.1nA when Vin=36V and CE="L".
The regulator stops operation to protect itself from damage caused by a short circuit.
