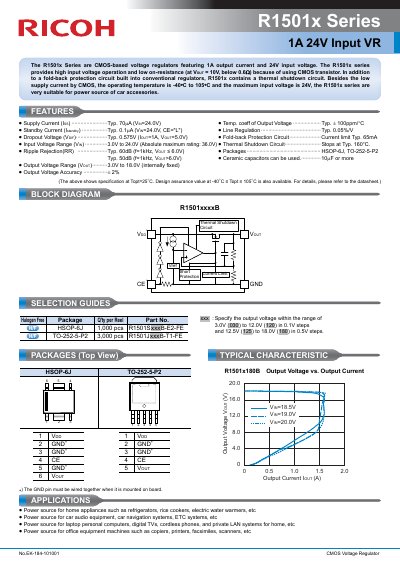

The R1501x Series is a CMOS-based voltage regulator with a 1A output current and 24V input voltage. The R1501x series provides high input voltage operation and low on-resistance (at VOUT = 10V, below 0.6Ω) due to the use of CMOS transistor. In addition to a fold-back protection circuit built into conventional regulators, R1501x contains a thermal shutdown circuit. Besides the low supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 24V, the R1501x series are very suitable for power source of car accessories.
The Ricoh R1501x Series are CMOS-based voltage regulators featuring a 1A output current and 24V input voltage. These regulators provide high input voltage operation and low on-resistance due to the use of CMOS transistors. They include a fold-back protection circuit and a thermal shutdown circuit to ensure safe operation.
| Output Current | 1A |
|---|---|
| Input Voltage Range | +3.0V to 24.0V |
| Maximum Input Voltage | 36.0V |
| Operating Temperature | -40°C to 105°C |
| Output Voltage Accuracy | + 2% |
| Thermal Shutdown | Typ. 160°C |
| Packages | HSOP-6J, TO-252-5-P2 |
The absolute maximum rating for the input voltage is 36.0V.
Yes, it contains a fold-back protection circuit and a thermal shutdown circuit.
The available packages are HSOP-6J and TO-252-5-P2.
