Key facts
- Brand
- Philips
- Model
- HR01
- Category
- Soymilk maker
- Industry
- Appliances
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

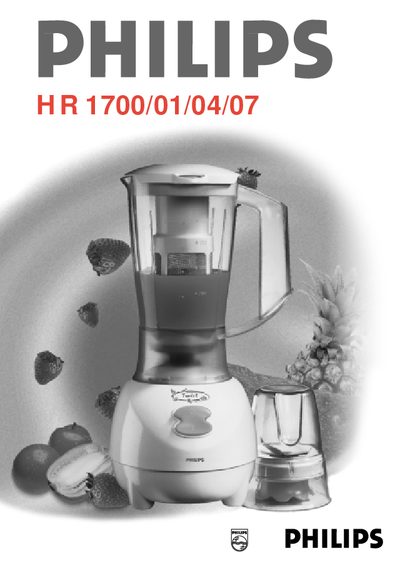

Philips HR1700 Blender & Mill User Manual
This manual provides safety guidelines, assembly steps, and usage tips for the Philips HR1700 blender and its optional mill and filter accessories. It explains how to prepare the blender jar, operate the motor, and switch between accessories safely.
The document also covers cleaning procedures, recommended ingredient limits, and troubleshooting advice, ensuring reliable performance and compliance with warranty requirements.
Philips HR01 specifications
| Motor type | universal, radio/TV interference suppressed |
|---|---|
| Power consumption | 800 Watt max. |
| Voltage & frequency | 230 V, 50 Hz |
| Bowl capacity (dry) | 2.5 L |
| Bowl capacity (liquids) | 1.7 L |
| Jar capacity (total) | 2.0 L |
| Jar capacity (effective) | 1.5 L |
| Blender drive shaft speed | 19500 rpm (max) |
| Dimensions (W×H×D) | 406 mm × 281 mm × 521 mm |
All Philips HR01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What should I do if the appliance stops running due to overheating?
Unplug the appliance, switch it off, let it cool for 15 minutes, then plug it in again and switch it on.
How is the belt tension adjusted on the food processor?
Apply a 30 N pretension force, reduce it to 10 N, and then fix the adjusting screw when the tension reaches 10 N.
Can I use the blender with ingredients hotter than 80 °C?
No, you must not fill the blender jar with ingredients hotter than 80 °C.
How long can the mill run continuously?
The mill should not be run for more than 30 seconds without a pause.
