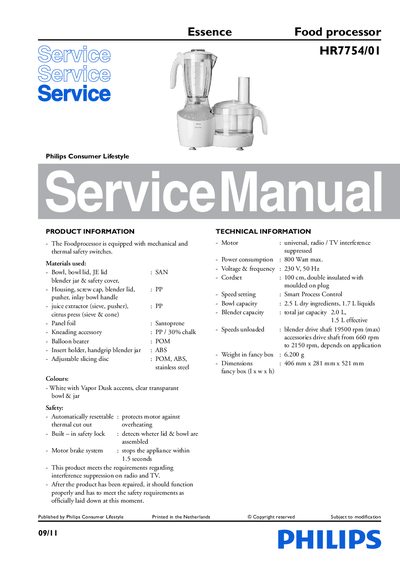

This document is a service manual for the Essence Food processor, providing information on the materials, colors, and safety features of the food processor, as well as technical information such as motor power and voltage.
This manual details the Philips HR7754/01 food processor, including its construction materials, safety switches, motor specifications, power consumption, voltage, capacities, and dimensions. It also describes the appliance's safety mechanisms such as an automatic resettable cut‑out and a built‑in safety lock.
The document contains step‑by‑step repair instructions, belt‑tension adjustment procedures, a comprehensive parts list with service codes, and exploded view diagrams to aid technicians in disassembly and re‑assembly of the unit.
| Motor type | universal, radio/TV interference suppressed |
|---|---|
| Power consumption | 800 Watt max. |
| Voltage & frequency | 230 V, 50 Hz |
| Bowl capacity (dry) | 2.5 L |
| Bowl capacity (liquids) | 1.7 L |
| Jar capacity (total) | 2.0 L |
| Jar capacity (effective) | 1.5 L |
| Blender drive shaft speed | 19500 rpm (max) |
| Dimensions (W×H×D) | 406 mm × 281 mm × 521 mm |
Unplug the appliance, switch it off, let it cool for 15 minutes, then plug it in again and switch it on.
Apply a 30 N pretension force, reduce it to 10 N, and then fix the adjusting screw when the tension reaches 10 N.
