Start here

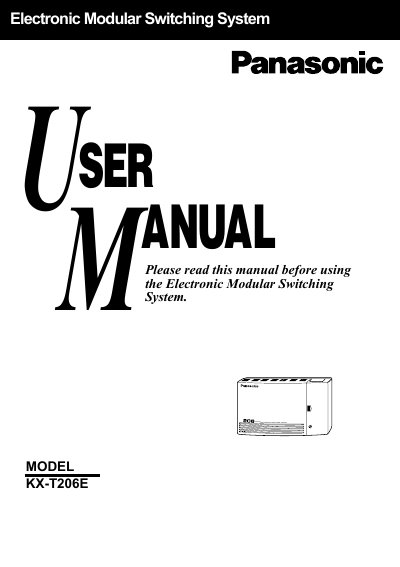

Panasonic KX-T206E Electronic Modular Switching System User Manual
This manual introduces the Panasonic KX‑T206E Electronic Modular Switching System, a proprietary telephone system with a display and various extensions such as KX‑T7130, KX‑T7020 and KX‑T7050. It explains the hardware components, installation notes and the basic operation of the system.
The document details all telephone features, including making calls, intercom, speed‑dial, doorphone, call hold, transfer, conference, paging and security functions. Step‑by‑step procedures and button‑press sequences are provided for each feature, along with indicator meanings and programming instructions.
Panasonic KX-T206E specifications
| CPU | 8‑bit stored‑program CPU |
|---|---|
| Control ROM | 64 KB |
| Control RAM | 8 KB |
| Primary Power Supply | AC 110–240 V, 50/60 Hz |
| Ring Voltage | 90 Vrms at 25 Hz |
| Environmental Range | 0–40 °C, 10%–90% relative humidity |
Source: Panasonic KX-T206E Electronic Modular Switching System Installation Guide
All Panasonic KX-T206E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many extensions can be connected to the system?
The system provides six extension jacks (EXTN.1‑EXTN.6), corresponding to extension numbers 21 through 26.
From: Panasonic KX-T206E Electronic Modular Switching System Installation Guide
How do I make a call on the proprietary telephone?
Lift the handset or press the SP‑PHONE or MONITOR button to go off‑hook, then dial the desired number.
From: Panasonic KX-T206E Electronic Modular Switching System User Manual
How is the doorphone feature used?
Go off‑hook and dial 31, wait for the confirmation tone, then speak to the visitor.
From: Panasonic KX-T206E Electronic Modular Switching System User Manual
