Key facts
- Brand
- Panasonic
- Model
- AK-HC1500
- Category
- Digital cameras
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-08-09
Start here

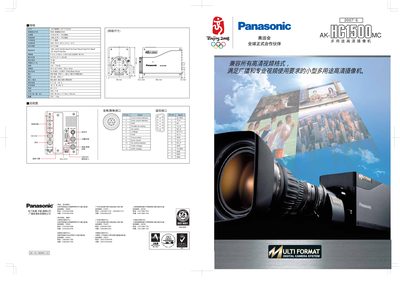

Panasonic AK-HC1500MC Camcorder User Manual
This document details the technical specifications of the Panasonic AK‑HC1500MC camcorder, including sensor type, image quality, power consumption, and environmental limits. It also describes the various mounting options, signal interfaces (HD‑SDI, BNC, 15‑pin D‑type), and optional accessories such as lenses and cloud‑type controllers.
Additional sections cover service and technical support locations across China, installation guidelines for outdoor waterproof housings, and control functions for multi‑camera and pan‑tilt‑zoom (PTZ) systems. The manual is intended for end‑users and technicians who need to set up, operate, and maintain the camcorder in broadcast, scientific, or sports‑event applications. This manual is written in Chinese.
Panasonic AK-HC1500 specifications
| Effective resolution | 1280 × 720 pixels |
|---|---|
| Frame‑rate range | 4 fps to 60 fps |
| Standard sensitivity | F10.0 (2000 Ix) |
All Panasonic AK-HC1500 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What frame‑rate range does the AK‑HC1500 support?
The camcorder can operate at variable frame rates from 4 fps up to 60 fps.
What is the minimum illumination required for shooting?
The camera can shoot at a minimum illumination of 0.015 lux.
What is the minimum illumination required for the AK‑HC1500MC?
The camcorder can record at a minimum illumination of 0.015 Iux.
What are the operating temperature limits?
It operates from 0 °C up to +40 °C.
