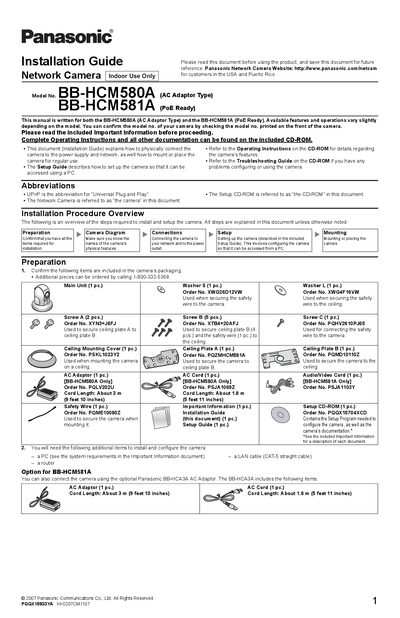

Panasonic BB-HCM580A / BB-HCM581A Installation Guide
This guide explains how to physically connect the Panasonic BB-HCM580A and BB-HCM581A network cameras to power and network, and how to mount them for indoor use. It covers both AC‑adaptor installation for the BB-HCM580A and Power‑over‑Ethernet (PoE) setup for the BB-HCM581A, as well as optional accessories and safety wiring.
The document also details the external I/O interface, sensor connections, and mounting procedures for ceiling or table installations, providing part numbers, cable lengths, and safety warnings to ensure a reliable installation.
Panasonic BB-HCM580A specifications
| Model numbers | BB-HCM580A (AC Adaptor Type), BB-HCM581A (PoE Ready) |
|---|---|
| Power options | AC adaptor for BB-HCM580A; PoE supported for BB-HCM581A |
| AC adaptor cord length | About 3 m (9 ft 10 in) |
| AC cord length | About 1.8 m (5 ft 11 in) |
| External I/O voltage | DC 10.5‑13 V |
| Maximum load on DC output terminal | 100 mA |
Source: Panasonic BB-HCM580A / BB-HCM581A Installation Guide
All Panasonic BB-HCM580A documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How can I power the BB-HCM580A camera?
Use the included Panasonic AC adaptor (order no. PQLV202U) together with the supplied AC cord.
Does the BB-HCM581A support Power over Ethernet (PoE)?
Yes, the BB-HCM581A can be connected to a PoE hub using a LAN cable.
How do I power the BB‑HCM580?
Connect the supplied Panasonic AC adapter and AC power cord to the DC IN jack of the BB‑HCM580.
From: Panasonic BB-HCM580 and BB-HCM581 Network Camcorder Installation Guide
Can I use PoE with the BB‑HCM581?
Yes, connect the BB‑HCM581 to a PoE hub using a standard Ethernet cable; the hub must be linked to the router.
From: Panasonic BB-HCM580 and BB-HCM581 Network Camcorder Installation Guide
