Key facts
- Brand
- Panasonic
- Model
- EW3109
- Category
- Health Care
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-08-07
Start here

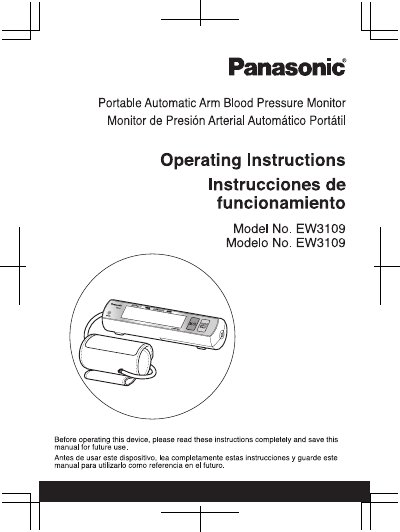

Panasonic EW3109-MUL Manual
User Manual 48 pages · 15.4 MB · EN
This manual provides operating instructions for the Panasonic Oscillometric Diagnostec™ Portable Automatic Arm Blood Pressure Monitor Model EW3109. The device is designed for home use by adults to measure systolic and diastolic blood pressure and pulse rate using a pressurized cuff on the arm.
Read onlinePanasonic EW3109 specifications
| Power | AA‑size batteries / AC adapter (100‑240 V, 50‑60 Hz) |
|---|---|
| Display mode | Digital LCD |
| Pressure measurement range | 0 kPa – 37.3 kPa (0 mmHg – 280 mmHg) |
| Pulse measurement range | 30 – 160 times/min |
| Pressure accuracy | ±0.8 kPa (±6 mmHg) |
| Pulse accuracy | ±5 % |
| Weight | ≈ 240 g (excluding batteries) |
| Dimensions | ≈ 520 mm × 208 mm × 520 mm |
| Upper‑arm cuff size | 20 cm – 34 cm circumference |
| Operating temperature | 5 °C – 40 °C |
| Storage temperature | -20 °C – 55 °C |
| Relative humidity (operating) | 10 % – 93 % |
| Battery type | 4 × AA alkaline (≈ 500 measurements) or zinc‑manganese trial batteries |
All Panasonic EW3109 documents by type

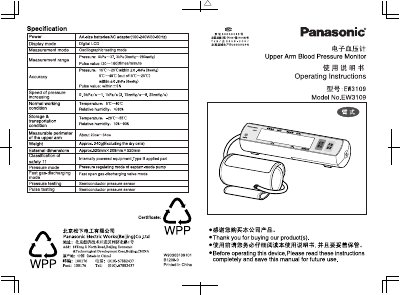

User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who is this blood pressure monitor intended for?
This device is designed to measure blood pressure and pulse rate of an adult individual for home use only.
What are the stated limits for measuring pulse rate?
The device is specified to measure a pulse rate between 30 and 160 pulses per minute.
