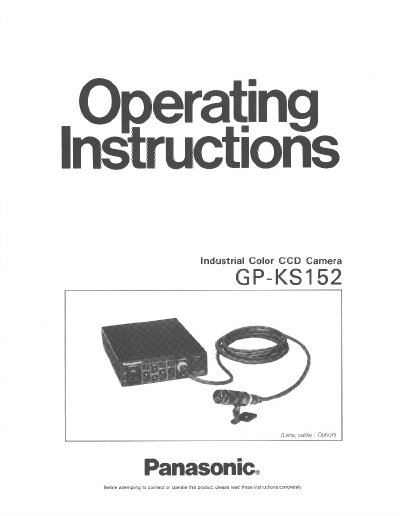

Panasonic GP-KS152 Industrial CCD Camera Operating Instructions
This manual provides operating instructions for the Panasonic GP-KS152 Color Digital Micro-Camera. The device is a compact CCTV camera weighing 0.04 lbs (169g) with dimensions of two-thirds inches in diameter and two inches in length. It features a 1/2-inch Interline CCD image sensor with 682 horizontal x 492 vertical pixels.

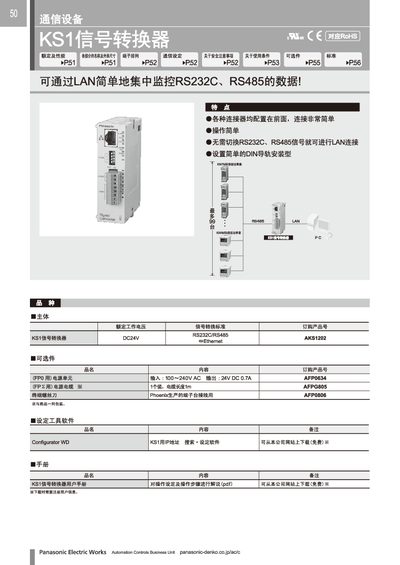

Read onlinePanasonic KS1 specifications
| Image Sensor | 1/2 inch Interline CCD |
|---|---|
| Resolution | 768 (H) x 492 (V) pixels |
| Horizontal Resolution | 480 lines |
| Minimum Scene Illumination | 0.3 footcandle (3 lux) |
| Signal-to-Noise Ratio | 50 dB |
| Operating Voltage | DC 12V |
| Maximum Cable Length | 33 feet (10 meters) |
| Video Output | S-VHS |
Source: Panasonic GPKS162CUD Manual
All Panasonic KS1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum cable length between the camera head and control unit?
The maximum cable length is 33 feet (10 meters) when using an optional camera cable.
What type of power supply is required for the unit?
The unit requires a DC 12V, 0.5 A - 0.7 A Class 2 Power supply.
What are the white balance modes available?
The camera supports Auto Tracing White Balance (ATW), Auto White balance control (AWC), or manual white balance control.
From: Panasonic GP-KS152 Industrial CCD Camera Operating Instructions
What is the recommended ambient temperature range?
The camera should not be installed in places beyond 14°F - 104°F (-10°C - +40°C).
From: Panasonic GP-KS152 Industrial CCD Camera Operating Instructions
What is the maximum cable length between the camera head and control unit?
The maximum cable length is 10 meters (33 feet) when using an optional camera cable.
From: Panasonic GP-KS1000 Industrial Digital Signal Processing Color Camera Operation Instruction
What power supply is required for this camera?
The camera must be connected to a DC 12V, Class 2 Power supply only.
From: Panasonic GP-KS1000 Industrial Digital Signal Processing Color Camera Operation Instruction
