Start here

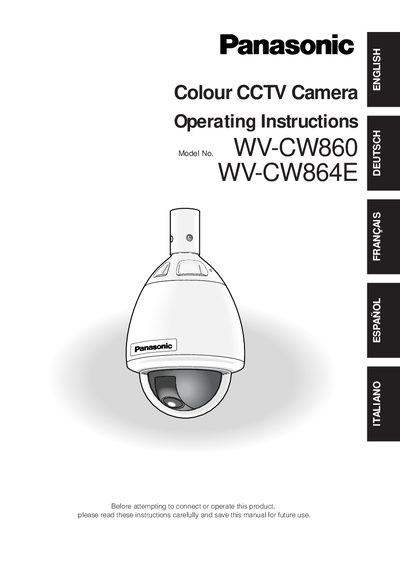

Panasonic WV-CW860 / WV-CW864E User Manual
The Panasonic WV-CW860 and WV-CW864E are outdoor colour CCTV cameras with a built‑in heater, fan, and a 1/4" CCD sensor. They feature a 22× zoom lens, pan/tilt mechanism, and RS‑485 communication, all housed in an IEC‑60529 rated enclosure.
The manual covers safety precautions, installation steps, menu setup, preset handling, wiring details, and optional accessories such as sun shields and fall‑prevention wires. It also provides shortcut keys for quick operation and a full list of specifications.
Panasonic WV-CW860 specifications
| Image resolution | 752 x 582 pixels |
|---|---|
| Minimum illumination (colour) | 0.5 lx |
| Minimum illumination (black/white) | 0.03 lx |
| Preset positions | 64 |
| Pan speed | 300 °/s |
| Input power (WV‑CW860) | 220‑240 V AC |
| Input power (WV‑CW864E) | 24 V AC |
| Operating temperature range | -30 °C to +50 °C |
All Panasonic WV-CW860 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input power requirement for each model?
The WV‑CW860 requires 220‑240 V AC, while the WV‑CW864E runs on 24 V AC.
How many preset positions can the camera store?
The camera can store up to 64 preset positions.
How many preset positions does the camera support?
It supports up to 64 preset positions.
From: Panasonic WV-CW860A Series Analogue Security Camera User Manual
What is the total zoom capability of the camera?
It provides 22× optical zoom combined with 10× digital zoom for a total of 220× zoom.
From: Panasonic WV-CW860A Series Analogue Security Camera User Manual
