Start here

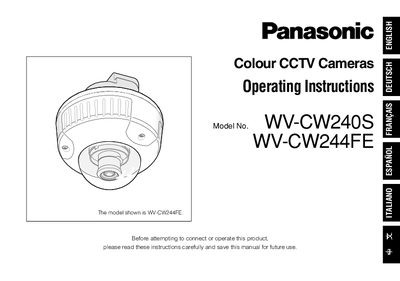

Panasonic WV-CW240S / WV-CW244FE Color CCTV Camera Operating Manual
This manual provides safety warnings, power‑wiring guidelines, and general handling instructions for the Panasonic WV‑CW240S and WV‑CW244FE color CCTV cameras. It explains the required grounding, colour‑coded wiring connections, and cautions against exposing the unit to rain, moisture, or direct sunlight.
Detailed sections describe installation methods, mounting options, camera adjustments (focus, zoom, tilt), optional heater accessories, and the camera’s technical specifications such as power requirements, dimensions, and image performance. The document also includes a parts list and standard accessories.
Panasonic WV-CW240S specifications
| Power supply (WV‑CW244FE) | AC 24 V, 50 Hz or DC 12 V |
|---|---|
| Power consumption | max 12.1 W |
| Signal‑to‑noise ratio | 50 dB |
| Operating temperature range | -10 °C to +50 °C |
| Minimum illumination | 1.0 lux (wide mode) |
Source: Panasonic WV-CW240S / WV-CW244FE Color CCTV Camera Operating Manual
All Panasonic WV-CW240S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum illumination needed for proper imaging?
The camera needs a minimum illumination of about 1.0 lux in wide mode.
From: Panasonic WV-CW240S / WV-CW244FE Color CCTV Camera Operating Manual
Can the camera be aimed directly at the sun?
No, the camera must not be aimed at the sun or any very bright object.
From: Panasonic WV-CW240S / WV-CW244FE Color CCTV Camera Operating Manual
What is the minimum illumination required for the WV‑CW240 series?
The camera requires a minimum illumination of 10 Lux.
What is the horizontal resolution of the WV‑CW240 cameras?
The horizontal resolution is 480 lines.
