Key facts
- Brand
- Panasonic
- Model
- PT-LB60
- Documents
- 4
- Languages
- EN · JA
- Last added
- 2012-08-07
Start here

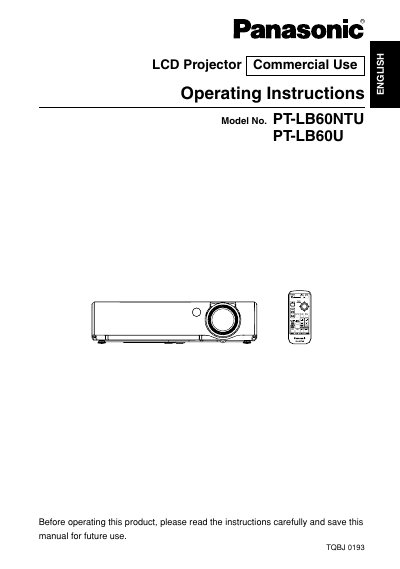

Panasonic PT-LB60NTU/PT-LB60U LCD Projector Operating Instructions
This document serves as the operating instruction booklet for the Panasonic PT-LB60NTU and PT-LB60U LCD projectors designed for commercial use. It provides comprehensive guidance on safety precautions, initial preparation, and physical setup of the device.
The manual details how to connect the projector to various input sources such as computers and video equipment, adjust picture settings including contrast and brightness, and utilize useful functions like keystone correction and screen display options. It also covers essential care and maintenance procedures, specifically regarding air filter cleaning and lamp replacement.
Panasonic PT-LB60 specifications
| Wireless Frequency Band | 2.4 GHz band |
|---|---|
| Operating System | Microsoft Windows 2000 Professional/XP Home Edition/XP Professional |
| CPU Requirement | Pentium III or faster or compatible processor |
| RAM Requirement | 256 MB or more |
| Hard Disk Capacity | 60 MB or more |
| Wireless Standard | 802.11 b/g |
| Web Browser | Internet Explorer 6.0 or newer |
| DirectX Requirement | DirectX 8.1b or newer |
Source: Panasonic (PT-LB50NTE/PT-LB55NTE/PT-LB60NTE) (PT-LB50NTU/PT-LB60NTU) Manual
All Panasonic PT-LB60 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Is a radio station license required to use the projector's wireless function?
No, a radio station license is not required, but users must read and understand the usage notes before use.
From: Panasonic (PT-LB50NTE/PT-LB55NTE/PT-LB60NTE) (PT-LB50NTU/PT-LB60NTU) Manual
Can the projector's wireless communication penetrate steel reinforcements or concrete?
No, wireless communication radio waves cannot penetrate steel reinforcements, metal, or concrete.
From: Panasonic (PT-LB50NTE/PT-LB55NTE/PT-LB60NTE) (PT-LB50NTU/PT-LB60NTU) Manual
What is the power supply requirement for this projector?
The projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC house current.
From: Panasonic PT-LB60NTU/PT-LB60U LCD Projector Operating Instructions
Can I use the supplied power cord for voltages higher than 125V?
No, the accessory cord can only be used for supplies up to 125 V, 7 A; a separate 250 V cord is needed otherwise.
From: Panasonic PT-LB60NTU/PT-LB60U LCD Projector Operating Instructions
What voltage range can the projector operate on?
The projector is designed to operate on an input voltage of 100 V to 240 V AC at 50 Hz or 60 Hz.
How much power does the projector draw when turned off?
Even when the power is turned off, the projector continues to draw approximately 3 W of power.
