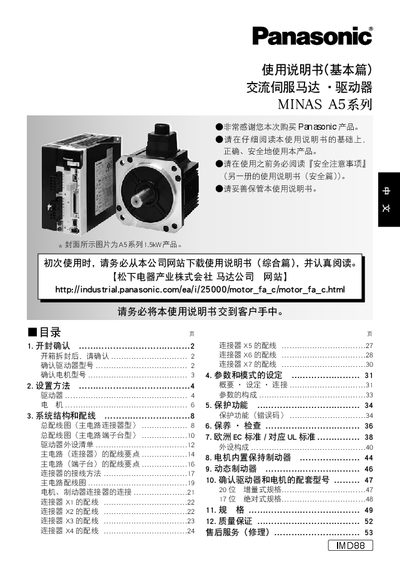

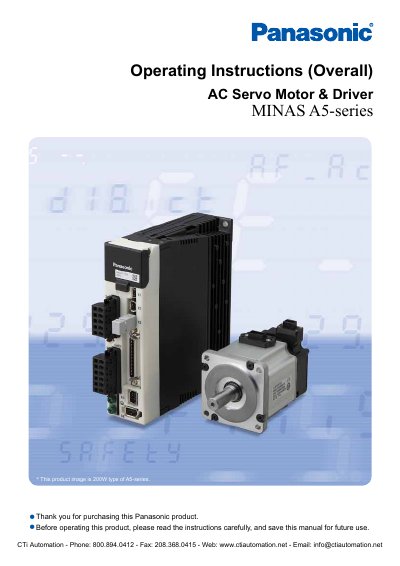

Panasonic MINAS A5-series AC Servo Motor & Driver Operating Instructions
This manual provides comprehensive operating instructions for the Panasonic MINAS A5-series AC Servo Motor and Driver. It guides users through identifying the correct model, checking combinations, and installing the equipment safely. The document details preparation steps, including system configuration and wiring to various connectors (X17, X2, X3, X4, X6, X7, XB).
Read onlinePanasonic MINAS A5 series specifications
| Rated Power | 1.5 kW |
|---|---|
| A5 Series A Type Voltage / Current | 100 V, 10 A (single‑phase) |
| A5 Series F Type Voltage / Current | 200 V, 100 A (three‑phase) |
| Operating Temperature Range | 0 °C – 55 °C |
| Operating Humidity Range | 20 % – 96 % RH |
| Grounding Screw Torque (M5) | 1.4 – 1.6 N·m |
| Grounding Screw Torque (M4) | 0.7 – 0.8 N·m |
Source: Panasonic MINAS A5 Series AC Servo Motor Driver User Manual
All Panasonic MINAS A5 series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions must be taken regarding the installation area?
The installation area should be away from heat-generating objects such as a heater and a large wire wound resistor.
From: Panasonic MINAS A5-series AC Servo Motor & Driver Operating Instructions
What type of material must the motor, driver, and peripheral equipment be mounted on?
They must be mounted on incombustible material such as metal to prevent fire.
From: Panasonic MINAS A5-series AC Servo Motor & Driver Operating Instructions
How do I confirm that the driver and motor models match the order?
Check the nameplates on both the driver and the motor and verify that the model numbers correspond to the ordered specifications.
From: Panasonic MINAS A5 Series AC Servo Motor Driver User Manual
What warranty period does Panasonic provide for this product?
The product has a warranty of one year from the month of manufacture, or 1 year + 6 months from the purchase date, whichever is earlier.
From: Panasonic MINAS A5 Series AC Servo Motor Driver User Manual
