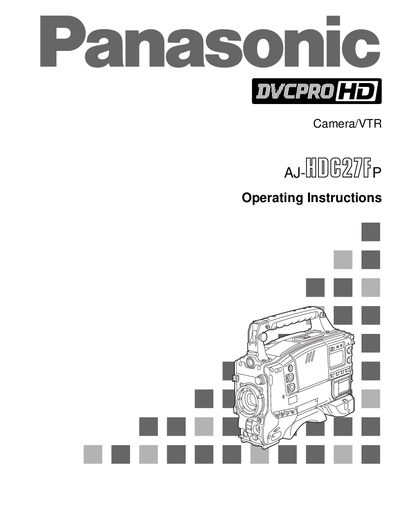

PANASONIC AJ-HDC27FP Operating Instructions
This manual provides detailed information on safety precautions, system configuration, parts functions, power supply options, and menu operations for the Panasonic AJ-HDC27F camera/VTR. It includes guidance on battery packs, lens attachment, audio input, viewfinder adjustments, and recording/playback functions.
The document also covers maintenance procedures, error codes, and specifications such as power consumption, operating temperature range, dimensions, and weight, helping users operate the unit safely and efficiently in field production environments.
Panasonic AJ-HDC27F specifications
| Supply voltage | DC 12 V (DC 11 V—DC 17 V) |
|---|---|
| Maximum power consumption | 39 W |
| Power consumption in SAVE REC mode | 33 W |
| Ambient operating temperature | +32°F to +104°F (0°C to +40°C) |
| Weight (main unit only) | 9.9 lb (4.5 kg) |
| Dimensions (W×H×D) | 5¼" × 8⅟₁₆" × 13" (132 × 204 × 330 mm) |
| Pickup device | 2/3-inch, on-chip IT-type CCD |
All Panasonic AJ-HDC27F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of battery is recommended for the AJ-HDC27F?
Replace the battery with part No. CR2032 only; using another battery may present a risk of fire or explosion.
How long can the unit operate continuously with the Anton/Bauer Trim pack?
Approximately 62 minutes of continuous operation.
What type of battery does the AJ‑HDC27FMC use?
It uses a CR2032 or BR2032 lithium battery manufactured by Panasonic.
From: Panasonic AJ-HDC27FMC HD Videography All-in-One User Manual
Can anyone replace the battery inside the AJ‑HDC27FMC?
Only qualified personnel may replace the battery, and the replacement must be the same model and installed correctly.
From: Panasonic AJ-HDC27FMC HD Videography All-in-One User Manual
