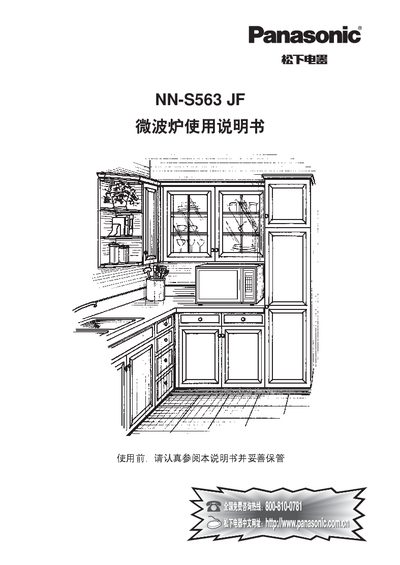

Panasonic NN-S563 JF Microwave Oven User Manual
This manual explains safety precautions, installation requirements, and proper use of the Panasonic NN‑S563 JF microwave oven. It covers clearances around the appliance, prohibited items such as metal, and recommended cleaning methods.
The document also lists the technical specifications, including voltage, power, dimensions, capacity, and weight, and provides troubleshooting tips for common issues. This manual is written in Chinese.
Panasonic NN-S563 JF specifications
| Rated voltage | 220 V ~ 50Hz |
|---|---|
| Rated input power | 1.000 W |
| Rated input current | 7.8 A |
| External dimensions | 510 mm x 383 mm x 304 mm |
| Cavity dimensions | 359 mm x 352 mm x 217 mm |
All Panasonic NN-S563 JF documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What clearance is required around the microwave?
Leave a 15 cm gap above the unit, 3 cm on each side, and 10 cm at the rear.
How should the microwave be cleaned?
Clean the interior with mild detergent; avoid abrasive or corrosive cleaners.
What safety precautions are required when repairing the microwave oven?
The manual warns that the oven contains high voltage and high current circuits, requires proper grounding, and that high‑voltage capacitors retain charge for about 30 seconds after power is removed. Technicians must discharge capacitors, avoid touching live parts, and ensure all screws are tightened to prevent microwave leakage.
From: Panasonic NN-K583JF NN-K583MF NN-K573JF NN-K573MF NN-S563JF NN-S553MF repair manual
What are the steps to replace the magnetron?
Discharge the high voltage, remove the two screws securing the magnetron housing, detach the two high‑voltage wires from the magnetron filament, then unscrew the four mounting screws. After installing the new magnetron, tighten all screws and verify no gaps exist between the waveguide and magnetron.
From: Panasonic NN-K583JF NN-K583MF NN-K573JF NN-K573MF NN-S563JF NN-S553MF repair manual
