Key facts
- Brand
- Panasonic
- Model
- KX-FLM653CN
- Category
- Fax machine
- Industry
- Computers
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-03-28
Start here

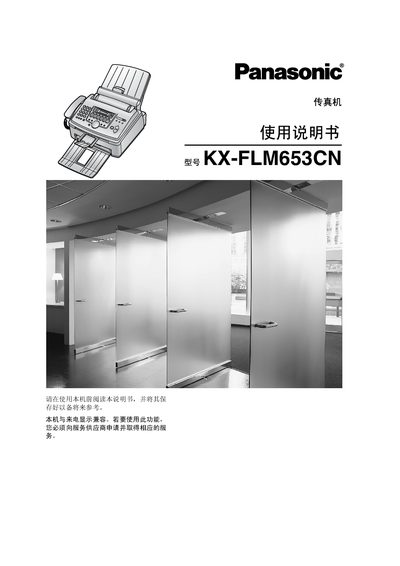

Panasonic KX-FLM653CN Fax Machine User Manual
This manual covers the installation of the fax machine, connection of telephone lines, loading of ink cartridges and paper, and configuration of fax settings. It also explains how to send and receive faxes, use copy and scan functions, and operate the device via a computer.
Safety guidelines are included to prevent fire, electric shock, and damage, such as keeping the unit away from water, using only the specified power source, and ensuring proper ventilation. Maintenance procedures for cleaning, replacing the toner cartridge and drum, and troubleshooting are also described. This manual is written in Chinese.
Panasonic KX-FLM653CN specifications
| Print speed | approx. 14 ppm |
|---|---|
| Scan resolution (optical) | max 200 × 400 dpi |
| Dimensions (H × W × D) | 370 mm × 430 mm × 480 mm |
| Maximum power consumption (lamp on) | ≈ 950 W |
All Panasonic KX-FLM653CN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Can I use the fax machine near water or in a wet environment?
No, the manual advises not to use the machine near water, in wet locations, or expose it to rain or moisture.
How should I clean the fax machine safely?
Before cleaning, unplug the power cord from the machine.
Can I use the fax machine near water?
Do not use the machine near water or in wet locations.
What safety steps should be taken before repairing the fax machine?
Unplug the AC power cord, use only manufacturer‑approved batteries, and follow the listed personal safety measures such as grounding yourself and avoiding contact with moving parts.
How is an insulation resistance test performed?
Disconnect the power cord, place a jumper across the plug pins, turn the power on, and measure the resistance between the chassis and any exposed metal parts with an ohmmeter.
