Key facts
- Brand
- Panasonic
- Model
- EW3039
- Documents
- 2
- Languages
- EN · JA
- Last added
- 2012-08-07
Start here

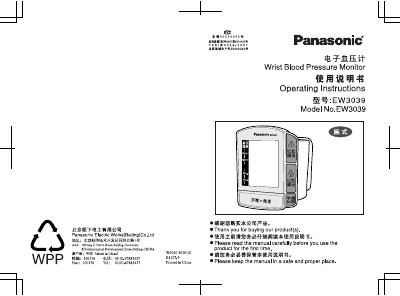

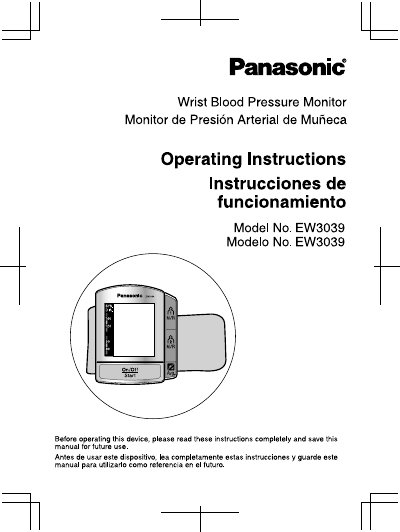

Panasonic EW3039-MUL Manual
This document provides operating instructions for the Panasonic EW3039 Wrist Blood Pressure Monitor. The device is designed for home use to measure systolic and diastolic blood pressure and pulse rate in adults using an oscillometric method. It is not intended for use on infants, children, or for continuous monitoring during medical emergencies.
Read onlinePanasonic EW3039 specifications
| Power | DC 3 V, 2 × AAA alkaline batteries |
|---|---|
| Display mode | Digital LCD |
| Measurement mode | Oscillometric system |
| Pressure range | 0 – 280 mmHg |
| Pulse rate range | 30 – 160 beats/min |
| Operating temperature | 5 °C – 40 °C |
| Storage temperature | -20 °C – 55 °C |
| Wrist circumference | 12.5 cm – 22.0 cm |
| Weight | ≈116 g (excluding batteries) |
| Dimensions | ≈78 mm × 63 mm × 26 mm |
| Pressure sensor | Semiconductor pressure sensor |
| Pulse sensor | Semiconductor pulse sensor |
Source: Panasonic EW3039 Wrist Blood Pressure Monitor User Manual
All Panasonic EW3039 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Is this device suitable for children?
No, the device is not intended for use on infants and children.
Can this monitor be used for continuous monitoring during medical emergencies?
No, this unit is not suitable for continuous monitoring during medical emergencies or operations.
How many measurements can the cuff be used for?
A new Panasonic cuff can be used for up to about 300 measurements, roughly three times per day.
From: Panasonic EW3039 Wrist Blood Pressure Monitor User Manual
What should I do if the display does not turn on?
Check that the batteries are installed correctly; replace them if they are installed backwards or exhausted.
From: Panasonic EW3039 Wrist Blood Pressure Monitor User Manual
