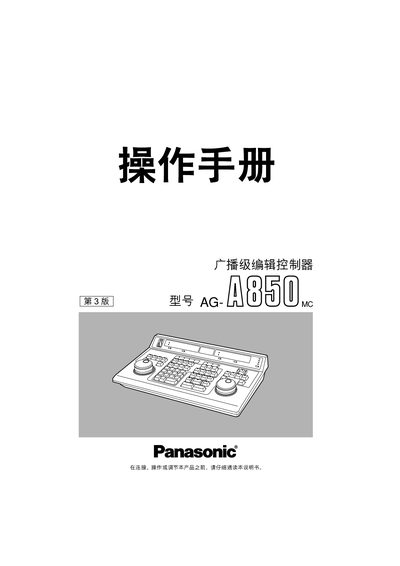

Panasonic AG-A850 Broadcast Editing Controller User Manual
This manual provides safety instructions, grounding requirements, and general usage guidelines for the Panasonic AG‑A850 broadcast‑grade editing controller. It explains how to connect the unit to VTRs, configure system settings, and operate the various editing functions.
Detailed sections describe control switches, editing operations (cut, A/B roll, slow‑motion, audio‑separate), digital input functions, and interface specifications. The specifications table lists power, environmental limits, dimensions, and supported video interfaces. This manual is written in Chinese.
Panasonic AG-A850 specifications
| Power supply | AC220‑240 V, 50‑60 Hz |
|---|---|
| Operating temperature | 5‑40 °C |
| Operating humidity | 35‑80 % |
| Dimensions | 424 mm (W) × 107 mm (H) × 279 mm (D) |
| Weight | 3.2 kg (main unit only) |
| Memory capacity | 512 events |
| RS‑422 interface | 9‑pin X6 (including 1 spare) |
| RS‑232C interface | 2‑pin (including 1 spare) |
| GPI interface | 2 headphone jacks |
Source: Panasonic AG-A850 Broadcast Editing Controller User Manual
