Key facts
- Brand
- Panasonic
- Model
- AW-SW350
- Category
- Other
- Industry
- Electronics
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-08-09
Start here

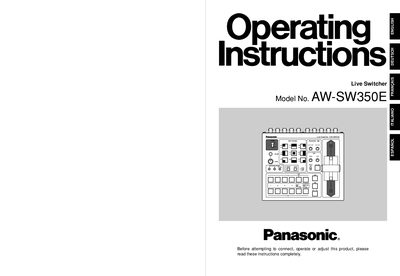

Panasonic AW-SW350E Live Switcher operating Manual
This manual begins with safety warnings and cautions, emphasizing the need to avoid liquid exposure, electrical shock, and unauthorized servicing. It also describes the product’s compact design, five video inputs, built‑in frame synchronizer, and external 12 V DC power supply.
The guide details the major operating controls, image‑transfer functions, connection options (including external synchronization, PC USB capture, and pan/tilt heads), rack‑mounting procedures, and system‑upgrade information, along with full specifications and a list of standard accessories.
Panasonic AW-SW350 specifications
| Video Inputs | Five composite video signal inputs |
|---|---|
| Power Supply | External 12 V DC |
| Frame Synchronizer | High-performance 10-bit frame synchronizer |
All Panasonic AW-SW350 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can the AW-SW350 handle asynchronous signals?
Yes, it accepts the input of asynchronous signals because it has a built-in frame synchronizer.
What is the operating temperature range?
The unit should be used between 32F and 104F.
What power source does the AW‑SW350 use?
It uses an external DC power supply of 12 V at 1.35 A (16 W).
How many video inputs are available on the AW‑SW350?
The switcher provides five video inputs.
