Key facts
- Brand
- Panasonic
- Model
- KX-FT79CN-W
- Category
- Fax machine
- Industry
- Computers
- Documents
- 2
- Languages
- ZH · JA
- Last added
- 2011-10-21
Start here

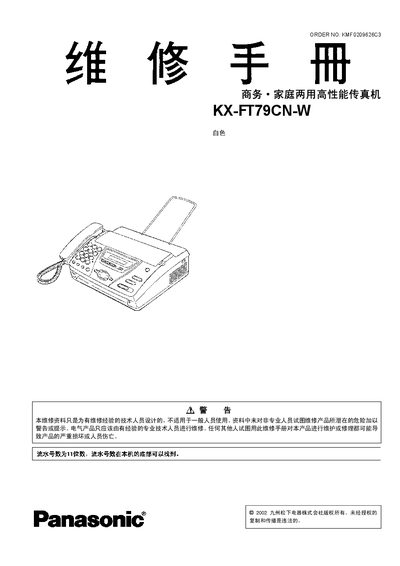

Panasonic KX-FT79CN-W Fax Machine Service Manual
This service manual provides detailed instructions for qualified technicians to maintain and repair the Panasonic KX-FT79CN-W fax machine. It includes safety warnings, required tools, and step‑by‑step procedures for disassembly, component replacement, and testing.
Key sections cover technical specifications, battery handling, wiring diagrams, troubleshooting guides, and test functions, enabling efficient diagnosis and restoration of full functionality. This manual is written in Chinese.
Panasonic KX-FT79CN-W specifications
| Maximum scan width | 216 mm |
|---|---|
| Maximum scan length | 600 mm |
| Horizontal resolution (standard) | 8 pels/mm |
| Vertical resolution (standard) | 3.85 lines/mm |
| Super fine resolution | 15.4 lines/mm |
| Dimensions (H×W×D) | 117 mm × 347 mm × 270 mm |
| Send power consumption | ≈25 W |
| Receive power consumption | ≈30 W |
| Maximum power consumption (copying 100 % black) | ≈125 W |
| Power supply | 220‑240 V, 50/60 Hz |
| Battery type | CR2032 |
All Panasonic KX-FT79CN-W documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How should power be disconnected before servicing the fax machine?
The AC power cord must be unplugged before any maintenance to prevent electric shock.
What battery is used in the KX-FT79CN-W and what precautions are required?
The device uses a CR2032 battery; it must be replaced only with a manufacturer‑approved equivalent and handled according to the manufacturer's instructions.
What battery should be used when replacing the internal battery?
Only the manufacturer‑recommended CR2032 lithium battery should be used, and it must be installed with the correct polarity.
From: Panasonic KX-FT79CN-W Business/Family Dual-Use Fax Machine Service Manual
What is the standby power consumption of the fax machine?
The unit consumes approximately 4.5 W in standby mode.
From: Panasonic KX-FT79CN-W Business/Family Dual-Use Fax Machine Service Manual
