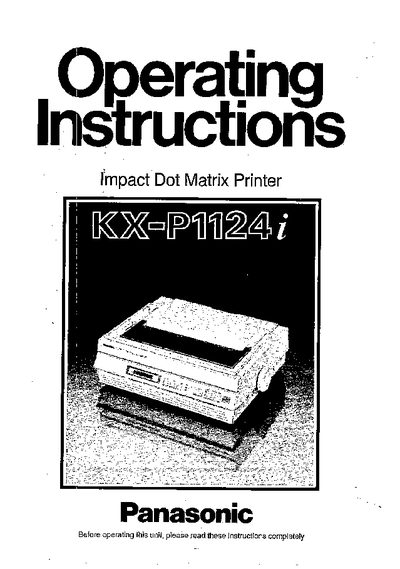

Panasonic KX-P1124i Operating Instructions
These operating instructions cover safety warnings, wiring colour codes, unpacking, installation, and initial setup of the Panasonic KX-P1124i dot matrix printer. The manual also explains how to configure the EZ Set Operator Panel, select command sets, and connect the printer to a computer.
Key sections include specifications, paper handling options, printing speed and quality settings, optional interface boards, maintenance procedures, and a list of optional accessories and supplies.
Panasonic KX-P1124 specifications
| Interface | Centronics parallel |
|---|---|
| Optional Serial Interface | RS-232C/Serial board KX-PS10 or KX-P19 |
| Dot matrix | 9x24 (Draft), 30x24 (LQ), 30x48 (SLQ) |
| Paper feed options | Pull/Push, Tractor feed, Friction feed |
All Panasonic KX-P1124 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the wiring colour codes for connecting the printer?
Green and yellow wires are for Earth, blue is Neutral, and brown is Live.
How can I select the printer’s command set?
Use the EZ Set Operator Panel to choose between Epson LQ‑850 and IBM Proprinter X24E command sets.
What interface options does the KX-P1124 printer support?
It includes a standard Centronics parallel interface and an optional RS‑232C serial interface.
What is the printing speed in Draft‑Elite mode?
The printer can print at 192 characters per second in Draft‑Elite pitch.
