Panasonic BT-LH80W Manuals

Key facts

Brand: Panasonic
Model: BT-LH80W
Category: Other Electronics
Industry: Electronics
Documents: 3
Languages: EN · ZH
Last added: 2012-08-02

Start here

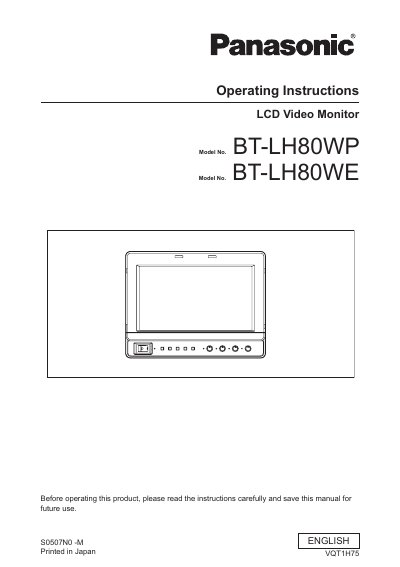

Panasonic BT-LH80W LCD Video Monitor Operating Instructions

User Manual 38 pages · 830 KB · EN

The Panasonic BT-LH80W is a thin, lightweight liquid crystal monitor designed for broadcasting and business applications. It features a 7.9-inch V effective display area and includes advanced functions such as a new IP conversion circuit to reduce time delays, diagonal line correction processing, and focus adjustment aids like the FOCUS-IN-RED and PIXEL TO PIXEL functions.

Read online

Panasonic BT-LH80W specifications

Display Size	7.9-inch V (effective display area)
Depth	64.7 mm (2-9/16 inches)
Weight	1.5 kg (3.3 Ib)

Source: Panasonic BT-LH80W LCD Video Monitor Operating Instructions

All Panasonic BT-LH80W documents by type

User Manual 3

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What type of battery is used for the main power source?

The product uses a rechargeable battery (Ni-Cd / Ni-MH / Liion Battery) for the main power source.

From: Panasonic BT-LH80W LCD Video Monitor Operating Instructions

What is the recommended operating temperature range?

The temperature inside the rack should be kept between 5 °C to 40 °C (41 °F to 104 °F).

From: Panasonic BT-LH80W LCD Video Monitor Operating Instructions

What battery types can be used to power the monitor?

The monitor can be powered by an Anton/Bauer type battery pack, a V‑mount type battery pack, or an external 12 V DC power supply.

From: Panasonic BT-LH80WP / BT-LH80WE LCD Video Monitor User Manual

What is the safe operating temperature range for the unit?

The unit should be operated in an environment where the temperature is between 5 °C and 40 °C (41 °F to 104 °F).
