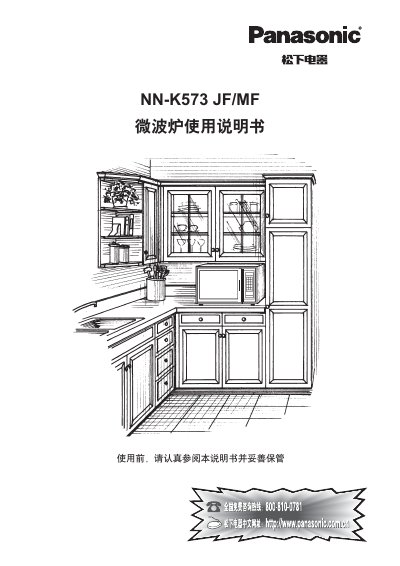

Panasonic NN-K573 Microwave Oven User Manual
This manual explains how to install and safely operate the Panasonic NN‑K573 microwave oven. It covers placement, power settings, clock and child‑safety lock configuration, and detailed cooking functions such as defrost, thin‑block baking, and combination grilling.
Additional sections describe the microwave’s heating principle, food characteristics, recommended cooking utensils, routine cleaning, and service‑repair procedures to keep the appliance in optimal condition. This manual is written in Chinese.
Panasonic NN-K573 specifications
| Input Power (low / medium / high) | 1,000 W / 1,100 W / 1,650 W |
|---|---|
| External Dimensions (L×W×H) | 510 mm × 380 mm × 304 mm |
| Microwave Frequency | 2,450 MHz |
All Panasonic NN-K573 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How can I cancel the child safety lock?
Press the start key three times consecutively; the lock indicator will disappear.
What is the maximum cooking time for the high‑power setting?
The maximum time for any setting is 99 minutes 90 seconds, but for high power the limit is 29 minutes 90 seconds.
What safety precautions are required when repairing the microwave oven?
The manual warns that the oven contains high voltage and high current circuits, requires proper grounding, and that high‑voltage capacitors retain charge for about 30 seconds after power is removed. Technicians must discharge capacitors, avoid touching live parts, and ensure all screws are tightened to prevent microwave leakage.
From: Panasonic NN-K583JF NN-K583MF NN-K573JF NN-K573MF NN-S563JF NN-S553MF repair manual
What are the steps to replace the magnetron?
Discharge the high voltage, remove the two screws securing the magnetron housing, detach the two high‑voltage wires from the magnetron filament, then unscrew the four mounting screws. After installing the new magnetron, tighten all screws and verify no gaps exist between the waveguide and magnetron.
From: Panasonic NN-K583JF NN-K583MF NN-K573JF NN-K573MF NN-S563JF NN-S553MF repair manual
