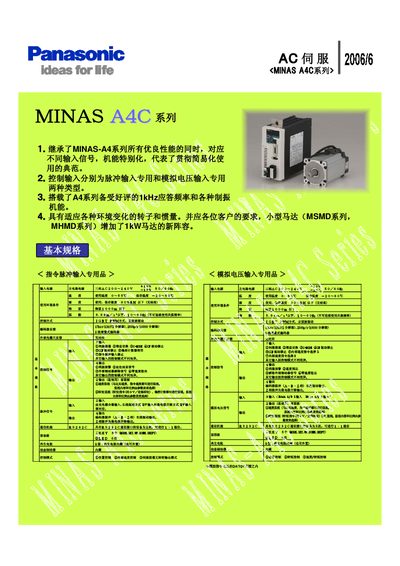

Mitsubishi Electric MINAS A4C Servo Drive Manual
The MINAS A4C series servo drive from Mitsubishi Electric is designed for three‑phase AC input of 200‑240 V (±10%/‑15%) at 50/60 Hz and operates in temperatures from 0 °C to 55 °C, with storage limits of –20 °C to 80 °C, humidity up to 90 %RH and altitude below 1000 m. It supports multiple control modes including speed, torque and position control, and provides 17‑bit encoder feedback (131 072 counts) with options for 5‑line incremental or external grating feedback.
The device offers 7 digital inputs and 4 digital outputs, plus analog inputs and monitoring outputs. Communication is provided via an RS‑232C interface for 1:1 host connection. Front‑panel keys and LEDs allow local operation, and the drive includes built‑in dynamic braking and optional Q‑type regenerative resistor. A comprehensive motor‑drive matching table lists compatible motors and their ratings. This manual is written in Chinese.
Panasonic Minas A4 specifications
| Input voltage (three‑phase) | 200 VAC, 50/60 Hz |
|---|---|
| Operating temperature range | 0 °C – 55 °C |
| Storage temperature range | -20 °C – 80 °C |
| Rated current (A‑type, single‑phase 100 V) | 5 A |
| Expected service life | 28 000 hours |
Source: Panasonic Minas A4 Series AC Servo Driver Technical Data
