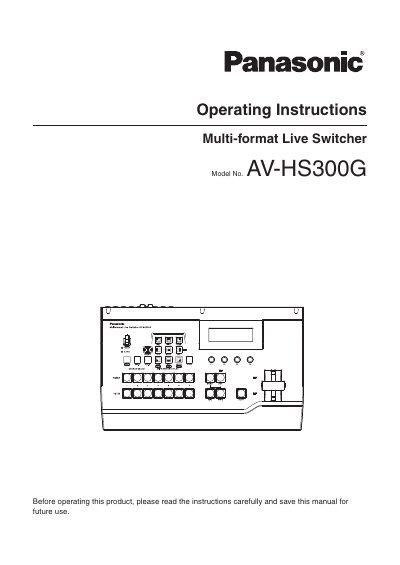

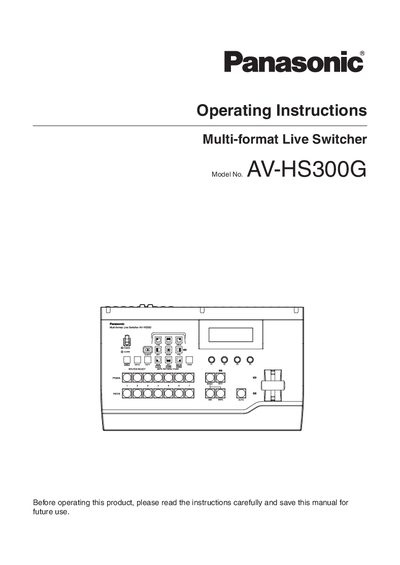

Panasonic AV-HS300G Operating Instructions
These operating instructions cover safety precautions, installation requirements, and detailed usage of the Panasonic AV‑HS300G multi‑format live switcher. The manual explains how to connect video sources, configure formats, and operate the built‑in effects and keying functions.
The document also includes wiring diagrams, network and RS‑422 control information, and maintenance tips such as cleaning and temperature limits. Contact information for Panasonic technical support and parts ordering is provided at the end of the manual.
Panasonic AV-HS300 specifications
| Video inputs | Six (five SDI, one DVI‑I) |
|---|---|
| Video outputs | Three SDI (PGM, PVW, AUX) |
| Supported HD formats | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Supported SD formats | 480/59.94i, 576/50i |
| Analog component inputs | Optional HD analog component (x5) |
| Power supply | External DC 12 V |
Source: Panasonic AV-HS300 Live Switcher Operating Instructions
All Panasonic AV-HS300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many video inputs does the AV‑HS300 provide?
The switcher provides six video inputs: five SDI inputs and one DVI‑I input.
From: Panasonic AV-HS300 Live Switcher Operating Instructions
What power source does the AV‑HS300 require?
It requires an external DC 12 V power supply.
From: Panasonic AV-HS300 Live Switcher Operating Instructions
What safety warnings should be followed when using the AV‑HS300G?
Do not expose the unit to rain or moisture, keep ventilation clear, and securely attach it to a floor or wall as instructed.
How many video inputs does the AV‑HS300G provide?
The switcher has six video inputs: five SDI inputs and one DVI‑I input.
What are the physical dimensions of the AV‑HS300MC?
The unit measures 410 mm × 103.5 mm × 240 mm (excluding protruding parts).
How many SDI inputs are available on the AV‑HS300MC?
The switcher provides five BNC SDI inputs for HD/SD signals.
