Start here

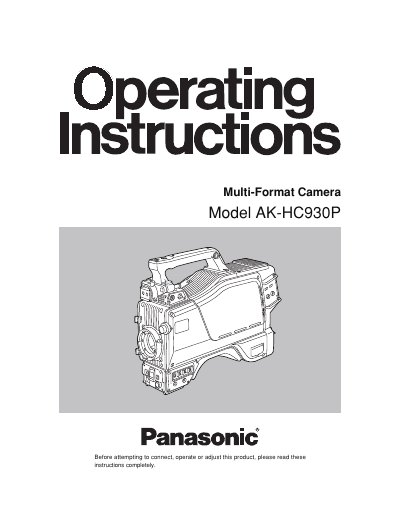

Panasonic AK-HC930P Multi-Format Camera Operating Instructions
This document provides operating instructions for the Panasonic AK-HC930P, a new-generation all-format HD camera designed to support the 1080i format. The camera utilizes newly developed 2.2 million-pixel CCDs with improved sensitivity and dynamic range compared to conventional models.
The manual covers essential topics including safety precautions, overview of features, controls and functions, mounting procedures for lenses and tripods, system connections (including CCU, ROP, and MSU), viewfinder adjustments, menu operations, connector pin assignments, external dimensions, and technical specifications.
Panasonic AK-HC930 specifications
| Resolution | 1920 (H) x 1080 (V) |
|---|---|
| CCD Type | Newly developed CCDs |
| A/D Conversion | 12-bit, 74 MHz |
Source: Panasonic AK-HC930P Multi-Format Camera Operating Instructions
All Panasonic AK-HC930 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can SD signals be output from this camera?
Yes, SD signals (D1, VBS) can be output by connecting the Multi-Format Camera to the CCU.
From: Panasonic AK-HC930P Multi-Format Camera Operating Instructions
What is the maximum vertical resolution of the camera's CCD?
The camera uses 2.2 million-pixel CCDs that support a resolution of 1920 (H) x 1080 (V).
From: Panasonic AK-HC930P Multi-Format Camera Operating Instructions
What is the power consumption of the AK‑HC980 camera when powered by the CCU?
The AK‑HC980 consumes about 57 W when powered by the CCU.
What type of image sensor is used in these cameras?
They use a FIT‑3CCD sensor with a resolution of 2.2 MP (220万像素).
