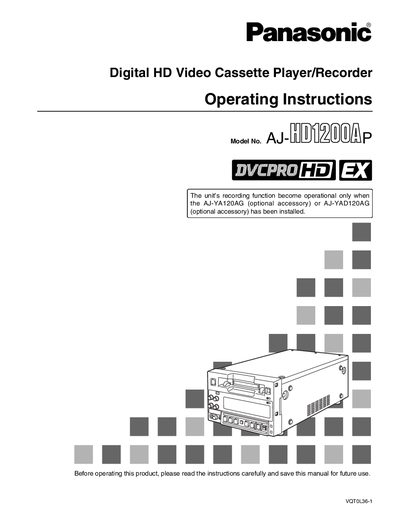

Panasonic AJ-HD1200AP Manual
This manual introduces the Panasonic AJ‑HD1200A multi‑format digital video cassette player, describing its compact rack‑mountable design, supported tape formats (HD, SD, DV, DVCAM) and optional accessories for recording. Safety information covers grounding, proper power connections, ventilation, and warnings against moisture and opening the unit.
The guide details front‑panel controls, menu‑driven settings, time‑code functions, and audio/video specifications. It also lists optional boards (AJ‑YA120AG, AJ‑YAD120AG) required for HD recording, and provides full technical specifications for video output, audio performance, connectors, and power requirements.
Panasonic AJ‑HD1200A specifications
| Video output adjustment range (HD serial digital) | 1080): +0.5H (in 13.5ns increments) |
|---|---|
| Audio sampling frequency | 48 kHz (synchronized with video) |
| Audio quantizing | 16 bits |
| Audio frequency response | 20 Hz to 20 kHz +1 dB |
| Audio dynamic range | More than 85 dB (1 kHz, emphasis OFF) |
| Audio distortion | Less than 0.1 % (1 reference level) |
| Audio crosstalk | Less than –80 dB (1 kHz, between 2 channels) |
| Analog audio inputs | XLR ×4, 600 Ω/high‑impedance switchable |
| HD serial digital output connectors | BNC ×2, 75 Ω (SMPTE 292M/296M/299M compliant) |
| Power supply voltage | 100 – 240 V AC (or DC 12 V) |
Source: Panasonic AJ-HD1200AP Manual
All Panasonic AJ‑HD1200A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions are required when installing the AJ‑HD1200A?
The unit must be grounded using a three‑pin plug, connected to a properly wired outlet, kept away from moisture, installed in a well‑ventilated space, and the cover must not be removed by the user.
Which optional accessories are needed for the recording function?
Recording is only possible when the AJ‑YA120AG or AJ‑YAD120AG optional board is installed.
