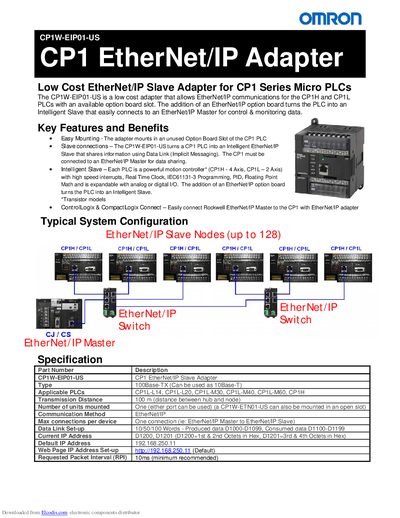

Omron CP1W-EIP01-US EtherNet/IP Adapter User Manual
The CP1W-EIP01-US is a low‑cost EtherNet/IP slave adapter that enables CP1H and CP1L micro PLCs to communicate with an EtherNet/IP master. It mounts in an unused option board slot of the PLC and turns the controller into an intelligent slave that shares data via implicit messaging.
The manual lists key features, typical system configurations, and detailed specifications such as supported PLC models, transmission distance, communication method, IP addressing, and recommended packet interval. Additional literature and support resources are referenced at the end of the document.
All Omron CP1 documents by type
Instruction set, parameters and examples for configuring or programming the device.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which PLC models are compatible with the CP1W‑EIP01‑US adapter?
The adapter works with CP1H and CP1L series PLCs that have an available option board slot.
How many EtherNet/IP connections can be made with the adapter?
Only one EtherNet/IP connection to a master is supported per adapter.
