Key facts
- Brand
- Omron
- Model
- CJ1W-V600C11
- Documents
- 2
- Languages
- EN · JA
- Last added
- 2012-05-08
Start here

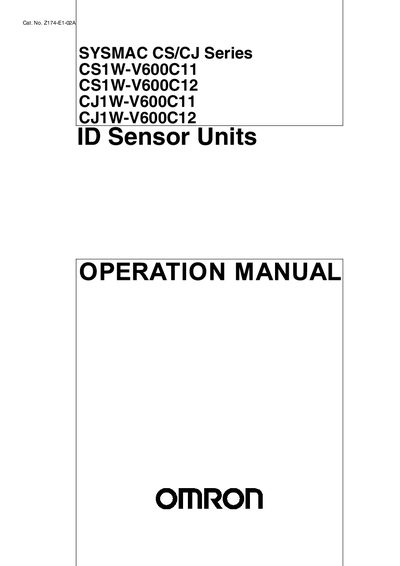

Omron CS1W-V600C11/CS1W-V600C12/CJ1W-V600C11/CJ1W-V600C12 Operation Manual
This manual provides safety and general precautions for the Omron CS1W‑V600C11/12 and CJ1W‑V600C11/12 ID sensor units. It explains the intended audience, operating environment, and application limits, and includes warranty information and liability statements.
The document details specifications, wiring diagrams, part names, functions, data exchange with CPU units, and operating modes. Sections on performance data, system configuration, and communications specifications guide users through installation and routine operation of the sensor units.
Omron CJ1W-V600C11 specifications
| Internal 5 V current | 260 mA |
|---|---|
| Internal 26 V current | 120 mA |
| External 24 V current | 360 mA |
| Operating temperature | 0 °C to +55 °C |
| Storage temperature | -20 °C to +75 °C |
| Vibration resistance | 10~57 Hz, 0.0753 mm amplitude |
| Shock resistance | 147 m/s² |
| Dimensions (CJ1W‑V600C11) | 35 × 100.5 × 130 mm |
Source: Omron CJ1W-V600C11/V600C12 and CS1W-V600C11/V600C12 ID Sensor Unit User Manual
All Omron CJ1W-V600C11 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the ID sensor units?
Omron provides a one‑year warranty from the date of sale for the products.
From: Omron CS1W-V600C11/CS1W-V600C12/CJ1W-V600C11/CJ1W-V600C12 Operation Manual
Can these sensor units be used as safety‑rated components?
No, the products are not safety rated and should not be relied upon as safety components.
From: Omron CS1W-V600C11/CS1W-V600C12/CJ1W-V600C11/CJ1W-V600C12 Operation Manual
Can the ID sensor unit be disassembled?
No, the unit must not be disassembled.
From: Omron CJ1W-V600C11/V600C12 and CS1W-V600C11/V600C12 ID Sensor Unit User Manual
What safety measures are required when using the unit?
External safety measures such as emergency stop circuits, interlock switches, and fault diagnosis must be implemented.
From: Omron CJ1W-V600C11/V600C12 and CS1W-V600C11/V600C12 ID Sensor Unit User Manual
