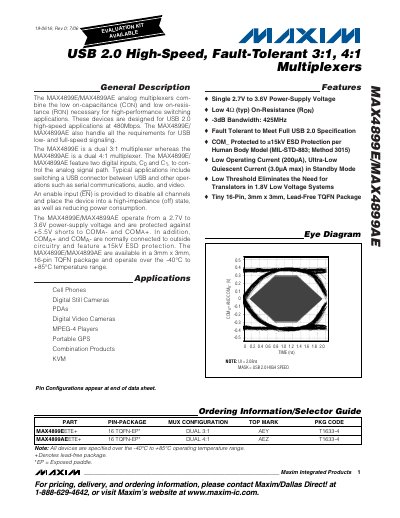

Maxim MAX4899E/MAX4899AE USB 2.0 High-Speed Multiplexer Data Sheet
The Maxim MAX4899E and MAX4899AE are dual analog multiplexers designed for USB 2.0 high‑speed (480 Mbps) applications. They support low‑speed and full‑speed USB signaling, feature low on‑capacitance and low on‑resistance switches, and include fault‑tolerant protection.
The devices operate from a 2.7 V to 3.6 V supply, provide ±15 kV ESD protection on the COM pins, and are available in a 16‑pin 3 mm × 3 mm TQFN package. Detailed electrical characteristics, pin descriptions, test circuits and layout guidelines are provided.
Maxim MAX4899AE specifications
| Supply Voltage Range | 2.7 V to 3.6 V |
|---|---|
| On‑Resistance (typ) | 4 Ω |
| Bandwidth (‑3 dB) | 425 MHz |
| ESD Protection (COM pins) | ±15 kV |
| Operating Temperature Range | -40 °C to +85 °C |
| Quiescent Supply Current (standby) | 3 µA max |
| Package | 16‑Pin TQFN (3 mm × 3 mm) |
