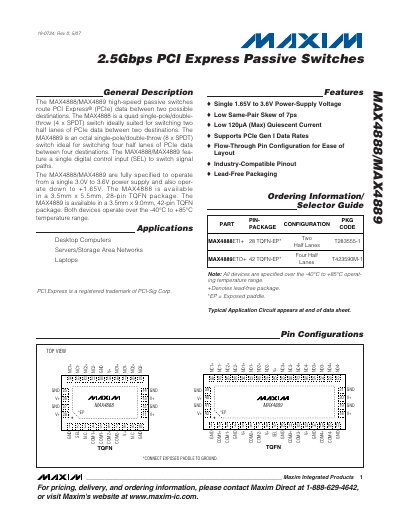

Maxim MAX4888/MAX4889 PCI Express Passive Switch Datasheet
The MAX4888 and MAX4889 are high‑speed passive switches that route PCI Express® (PCIe) data between two possible destinations. The MAX4888 provides a 4 × SPDT (quad) configuration for switching two half‑lanes, while the MAX4889 offers an 8 × SPDT (octal) configuration for four half‑lanes. Both devices use a single digital control input (SEL) to select the signal path and are fully specified for operation from a single 1.65 V to 3.6 V supply.
Key features include low on‑resistance (≈0.1 Ω), fast turn‑on/off times (≈90 ns), propagation delay around 50 ps, and operation over a temperature range of –40 °C to +85 °C. The devices are supplied in thin‑QFN packages (28‑pin 3.5 × 5.5 mm for MAX4888, 42‑pin 3.5 × 9.0 mm for MAX4889) and are intended for desktop computers, servers, storage area networks, and laptops.
Maxim MAX4889 specifications
| Maximum Data Rate | 2.5 Gbps PCI Express |
|---|---|
| Supply Voltage Range | 1.65 V to 3.6 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package (MAX4888) | 28‑pin TQFN 3.5 mm × 5.5 mm |
| Package (MAX4889) | 42‑pin TQFN 3.5 mm × 9.0 mm |
| Input Logic High Threshold (V IH) | 1.4 V |
| Input Logic Low Threshold (V IL) | 0.5 V |
| Quiescent Current (MAX4889) | 120 µA |
Source: Maxim MAX4888/MAX4889 PCI Express Passive Switch Datasheet
All Maxim MAX4889 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the MAX4888 and MAX4889 support?
Both devices operate from a single 1.65 V up to 3.6 V supply voltage.
From: Maxim MAX4888/MAX4889 PCI Express Passive Switch Datasheet
What is the maximum PCI Express data rate of these switches?
They are specified for a maximum data rate of 2.5 Gbps PCI Express (Gen I).
From: Maxim MAX4888/MAX4889 PCI Express Passive Switch Datasheet
What is the supply voltage range for the MAX4888/MAX4889?
The devices operate from a single 1.65 V to 3.6 V power‑supply voltage.
How many pins does the MAX4889 package have?
The MAX4889 is available in a 42‑pin TQFN package.
