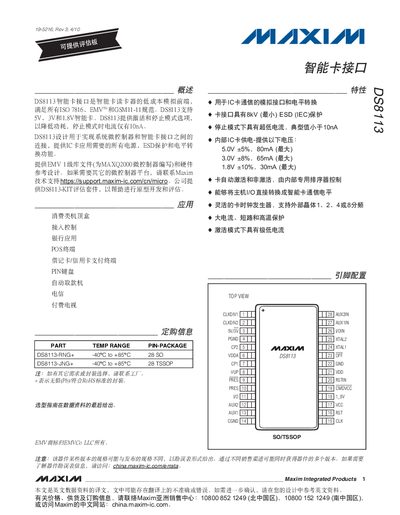

MAXIM ET9224 intelligence card Interface Manual
The Maxim DS8113 is a low‑cost smart‑card interface supporting ISO 7816, GSM 11‑11 and EMV standards. It operates from 1.8 V, 3 V or 5 V supplies and offers an ultra‑low stop‑mode current of about 10 nA.
The manual provides absolute maximum ratings, recommended DC operating conditions, detailed pin descriptions, timing parameters and package information (28‑SO and 28‑TSSOP). It also includes layout recommendations for minimizing noise and ensuring reliable operation. This manual is written in Chinese.
Maxim DS8113 specifications
| Digital Supply Voltage (VDD) range | 2.7 V – 6.0 V |
|---|---|
| Maximum Clock Frequency | 10 MHz |
| Maximum I/O Data‑Line Frequency | 1 MHz |
| Operating Temperature Range | -40 °C to +85 °C |
