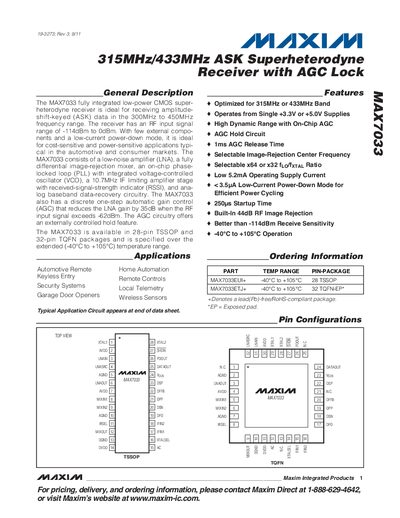

Maxim MAX7033 315MHz/433MHz ASK Superheterodyne Receiver with AGC Lock Datasheet
The MAX7033 integrates a low‑noise amplifier, differential image‑rejection mixer, on‑chip PLL/VCO, IF limiting amplifier with RSSI, and baseband data‑recovery circuitry. It operates from a single +3.3 V or +5.0 V supply and includes a one‑step automatic gain control that reduces LNA gain by 35 dB when the RF input exceeds -62 dBm, with an external hold feature.
Typical applications include home automation, remote controls, automotive keyless entry, security systems, and garage‑door openers. The device is offered in 28‑pin TSSOP and 32‑pin TQFN packages and is rated for -40 °C to +105 °C operation.
Maxim MAX703 specifications
| Supply Voltage | +3.3 V or +5.0 V |
|---|---|
| Operating Supply Current | 5.2 mA (typical) |
| Startup Time | 250 µs |
Source: Maxim MAX7033 315MHz/433MHz ASK Superheterodyne Receiver with AGC Lock Datasheet
All Maxim MAX703 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Maxim MAX7033 315MHz/433MHz ASK Superheterodyne Receiver with AGC Lock Datasheet 16 p
- Maxim MAX7034 Superheterodyne Receiver Datasheet 14 p
- Maxim MAX7036 300MHz to 450MHz ASK Receiver with Internal IF Filter Handbook 13 p
- Maxim MAX7032 ASK/FSK Transceiver Datasheet 32 p
- Maxim MAX7030 ASK Transceiver Datasheet 20 p
- Maxim MAX7031 Low-Cost 308/315/433.92 MHz FSK Transceiver Datasheet 20 p
- Maxim MAX703/MAX704 Datasheet 9 p
