Start here

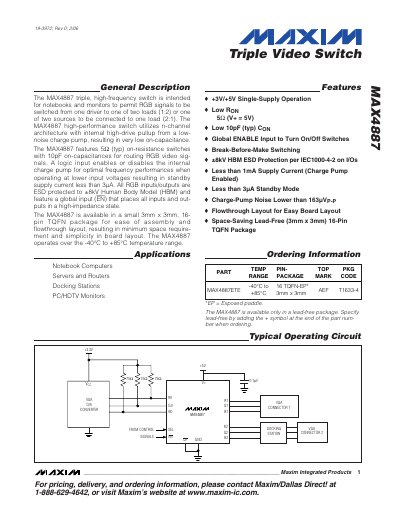

Maxim MAX4887 Triple Video Switch Datasheet
The MAX4887 is a triple, high‑frequency video switch intended for notebook computers, monitors, docking stations, and similar applications. It routes RGB signals between one driver and two loads (1:2) or between two sources and one load (2:1) using three SPDT analog switches. The device uses an internal low‑noise charge pump to provide a high‑drive pull‑up, achieving low on‑resistance (≈5 Ω) and low on‑capacitance (≈10 pF) for high‑speed video signals.
The datasheet provides absolute maximum ratings, detailed electrical characteristics for 5 V and 3.3 V supplies, pin descriptions, layout recommendations, and ESD protection information. The part is supplied in a 3 mm × 3 mm, 16‑pin thin‑QFN package with an exposed paddle for grounding and is rated for operation from –40 °C to +85 °C.
Maxim MAX4887 specifications
| On‑Resistance (typical) | 5 Ω |
|---|---|
| On‑Capacitance (typical) | 10 pF |
| Supply Voltage Range (5 V version) | 4.5 V – 5.5 V |
| Quiescent Supply Current (standby) | < 3 µA |
| Operating Temperature Range | ‑40 °C to +85 °C |
| Package | 3 mm × 3 mm, 16‑pin TQFN |
| ESD Protection | ±8 kV HBM |
| Continuous Current Through Any Switch | ±120 mA |
| Peak Current Through Any Switch (1 ms, 10 % duty) | ±240 mA |
All Maxim MAX4887 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the MAX4887?
The MAX4887 operates with a supply voltage between 4.5 V and 5.5 V.
How many pins does the MAX4887 package have?
The device is supplied in a 16‑pin thin‑QFN package.
How is the MAX4887 protected against electrostatic discharge?
All I/Os have +8 kV Human Body Model ESD protection.
What is the standby current of the MAX4887?
Standby supply current is less than 3 pA.
