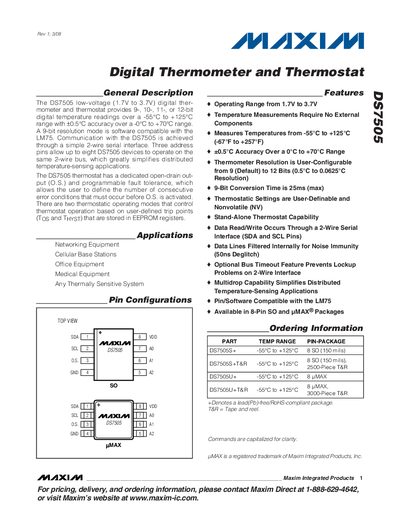

Maxim DS7505 Digital Thermometer and Thermostat Datasheet
The DS7505 digital thermometer and thermostat operates from 1.7 V to 3.7 V and measures temperatures from –55 °C to +125 °C with configurable resolution of 9 to 12 bits. It communicates via a simple 2‑wire serial interface and supports up to eight devices on the same bus using three address pins.
The device includes a dedicated open‑drain thermostat output, programmable fault tolerance, and a shutdown mode for low‑power applications. All settings are stored in non‑volatile EEPROM and can be copied from shadow SRAM. Package options include 8‑pin SO and pMAX® packages.
Maxim DS75 specifications
| Supply voltage range | 1.7 V to 3.7 V |
|---|---|
| Temperature measurement range | -55 °C to +125 °C |
| Resolution options | 9‑12 bits (0.5 °C to 0.0625 °C) |
| 9‑bit conversion time | 25 ms (max) |
| Accuracy | ±0.5 °C over 0 °C to +70 °C |
| Interface | 2‑wire serial (SDA, SCL) |
| Address pins | Three (A0, A1, A2) allowing up to 8 devices |
| Package types | 8‑pin SO and pMAX® |
Source: Maxim DS7505 Digital Thermometer and Thermostat Datasheet
All Maxim DS75 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the DS7505 require?
The DS7505 operates from 1.7 V to 3.7 V supply voltage.
From: Maxim DS7505 Digital Thermometer and Thermostat Datasheet
How many address pins are on the DS7505 and what do they enable?
It has three address pins (A0, A1, A2) that allow up to eight DS7505 devices on the same 2‑wire bus.
From: Maxim DS7505 Digital Thermometer and Thermostat Datasheet
What supply voltage range does the DS75LX require?
The DS75LX operates from 1.7 V to 3.7 V supply voltage.
From: Maxim DS75LX Digital Thermometer and Thermostat Datasheet
How many DS75LX devices can share the same 2‑wire bus?
Up to 27 devices can be addressed on a single 2‑wire bus using the three tri‑state address pins.
From: Maxim DS75LX Digital Thermometer and Thermostat Datasheet
What supply voltage range does the DS75LV support?
The DS75LV operates from 1.7 V to 3.7 V.
From: Maxim DS75LV Digital Thermometer and Thermostat Datasheet
How many address pins are available for multi‑device operation?
It has three address pins, allowing up to eight devices on the same 2‑wire bus.
From: Maxim DS75LV Digital Thermometer and Thermostat Datasheet
