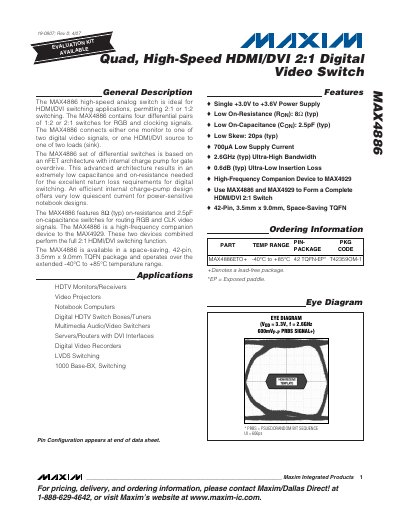

Maxim MAX4886 High-Speed Analog Switch Datasheet
The MAX4886 is a high‑speed analog switch designed for HDMI/DVI 2:1 or 1:2 switching. It contains four differential pairs that route RGB and clock signals and is built on an nFET architecture with an internal charge pump for low on‑resistance and capacitance. The device operates from –40 °C to +85 °C and is supplied in a 42‑pin thin‑QFN package.
The datasheet provides absolute maximum ratings, electrical characteristics, pin descriptions, PCB layout recommendations, timing diagrams, and typical application circuits. It also includes package information and ordering details for designers integrating the MAX4886 into video switching systems.
Maxim MAX4886 specifications
| On‑Resistance (typical) | 8 Ω |
|---|---|
| Supply Voltage Range | 3.0 V to 3.6 V |
| Bandwidth (‑3 dB) | 2.6 GHz (typ) |
| Insertion Loss (typ) | 0.6 dB |
| Skew (typ) | 20 ps |
| Operating Temperature Range | -40 °C to +85 °C |
All Maxim MAX4886 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on‑resistance of the MAX4886?
The typical on‑resistance is 8 Ω.
What supply voltage range does the MAX4886 require?
It operates from 3.0 V to 3.6 V.
What is the on‑resistance of the MAX4886?
The typical on‑resistance is 8 Ω.
From: Maxim MAX4886 Quad High-Speed HDMI/DVI 2:1 Switch Datasheet
What supply voltage does the MAX4886 require?
It operates from 3.0 V to 3.6 V.
From: Maxim MAX4886 Quad High-Speed HDMI/DVI 2:1 Switch Datasheet
