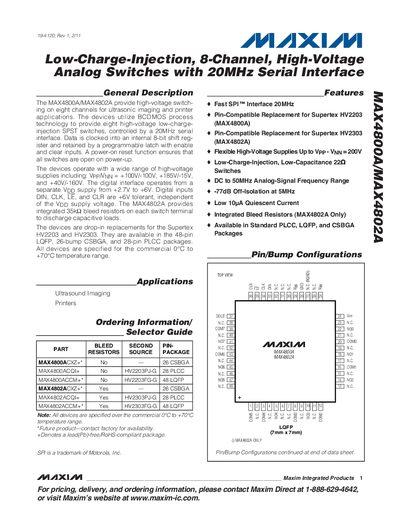

Maxim MAX4800A/MAX4802A Analog Switch Datasheet
The MAX4800A and MAX4802A provide eight high‑voltage low‑charge‑injection SPST switches for ultrasonic imaging and printer applications. They operate from a wide range of high‑voltage supplies and use a separate 2.7 V‑6 V logic supply, with a fast 20 MHz SPI interface for control.
Key features include flexible high‑voltage supplies up to 200 V, low quiescent current, integrated bleed resistors on the MAX4802A, and availability in 48‑pin LQFP, 26‑bump CSBGA, and 28‑pin PLCC packages. Detailed electrical, timing, and pin‑out specifications are provided for designers.
Maxim MAX4802A specifications
| High‑voltage supply range | Vpp‑VNN up to 200 V |
|---|---|
| Logic supply voltage | 2.7 V to 6 V |
| Package options | 48‑pin LQFP, 26‑bump CSBGA, 28‑pin PLCC |
All Maxim MAX4802A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum high‑voltage supply range for the MAX4800A/MAX4802A?
The devices support a high‑voltage supply range of up to 200 V between Vpp and VNN.
Which package types are offered for these analog switches?
They are offered in 48‑pin LQFP, 26‑bump CSBGA, and 28‑pin PLCC packages.
What is the SPI interface speed of the MAX4800A/MAX4802A?
The devices use a 20 MHz SPI interface.
From: Maxim MAX4800A/MAX4802A High-Voltage Analog Switches Datasheet
What is the operating temperature range?
The devices are specified for 0 °C to +70 °C.
From: Maxim MAX4800A/MAX4802A High-Voltage Analog Switches Datasheet
