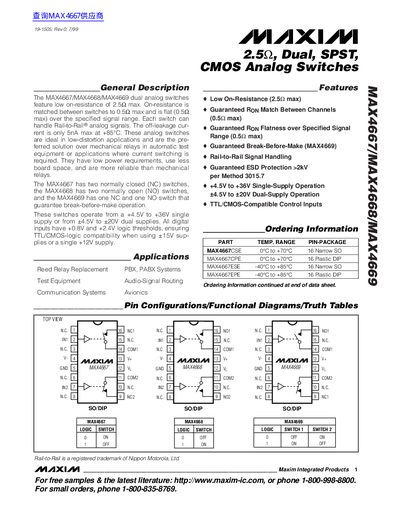

Maxim MAX4667/MAX4668/MAX4669 CMOS Analog Switches Datasheet
The MAX4667, MAX4668, and MAX4669 are dual CMOS analog switches with low on‑resistance (2.5 Ω max) and matched channels (0.5 Ω max). They support rail‑to‑rail signal handling, low off‑leakage (5 nA max at +85 °C), and are suited for low‑distortion applications such as test equipment and audio‑signal routing.
The devices operate from a +4.5 V to +36 V single‑supply or +4.5 V to +20 V dual‑supply, feature TTL/CMOS‑compatible logic inputs (+0.8 V/+2.4 V thresholds), and include ESD protection (>2 kV). The MAX4669 provides break‑before‑make operation. Detailed pin descriptions, absolute maximum ratings, and electrical characteristics are included.
Maxim MAX4668 specifications
| On‑Resistance (max) | 2.5 Ω |
|---|---|
| On‑Resistance Match (max) | 0.5 Ω |
| Off‑Leakage Current (max at +85 °C) | 5 nA |
| Supply Voltage Range – Single Supply | +4.5 V to +36 V |
| Supply Voltage Range – Dual Supply | +4.5 V to +20 V |
| Break‑Before‑Make (MAX4669) | Yes |
| ESD Protection | >2 kV |
Source: Maxim MAX4667/MAX4668/MAX4669 CMOS Analog Switches Datasheet
