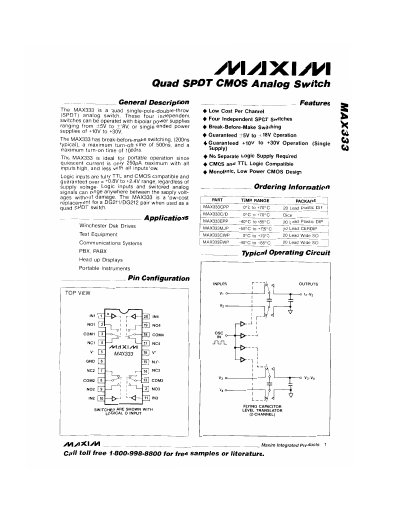

Maxim MAX333 Quad SPDT CMOS Analog Switch Datasheet
The MAX333 is a quad single‑pole‑double‑throw (SPDT) CMOS analog switch that can be operated with bipolar supplies from +5 V to +18 V or single‑ended supplies from +10 V to +30 V. It features break‑before‑make switching, low quiescent current (≈250 µA), and TTL/CMOS compatible logic inputs.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, typical operating circuits, and recommended protection diodes (1N4001 or 1N914) for over‑voltage conditions. It also includes ordering information for various package options.
Maxim MAX333 specifications
| Dual‑Supply Voltage Range | +5 V to +18 V |
|---|---|
| Single‑Supply Voltage Range | +10 V to +30 V |
| Quiescent Current (all inputs high) | ≈250 µA max |
| Break‑before‑make Switching Time | ≈200 ns (typical) |
| Turn‑off Time | ≤50 ns |
| Turn‑on Time | ≤1000 ns |
| Input Voltage High | 24 V |
| Input Voltage Low | 0 V |
All Maxim MAX333 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage ranges does the MAX333 support?
It can operate from +5 V to +18 V with dual supplies, or from +10 V to +30 V with a single supply.
What is the typical break‑before‑make switching time?
The device provides a typical break‑before‑make time of about 200 ns.
