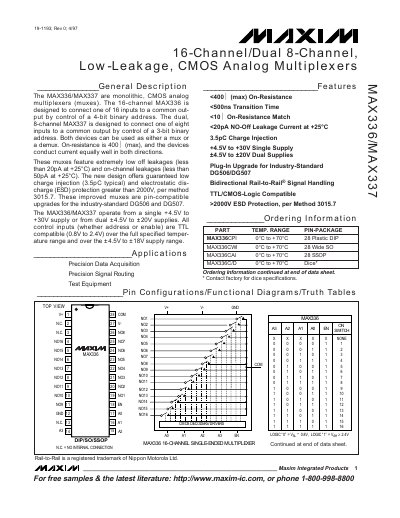

Maxim MAX336/MAX337 Analog Multiplexer Datasheet
The MAX336 (16‑channel) and MAX337 (dual 8‑channel) are monolithic CMOS analog multiplexers that connect one of multiple inputs to a common output using a binary address. They support bidirectional signal handling, low on‑resistance, and extremely low leakage currents, making them suitable for precision data‑acquisition and signal‑routing applications.
The devices operate from a single +4.5 V to +30 V supply or from dual ±4.5 V to ±20 V supplies, feature TTL‑compatible control inputs, and provide >2000 V ESD protection. Typical performance includes <400 Ω on‑resistance, <500 ns transition time, and 3.5 pC typical charge injection. Pin‑compatible upgrades are available for DG506/DG507 parts.
Maxim MAX337 specifications
| On‑Resistance (max) | <400 Ω |
|---|---|
| Off‑Leakage Current (max) | <20 pA at +25 °C |
| On‑Leakage Current (max) | <50 pA at +25 °C |
| Supply Voltage Range (single) | +4.5 V to +30 V |
| Supply Voltage Range (dual) | ±4.5 V to ±20 V |
| ESD Protection | >2000 V |
| Transition Time (max) | <500 ns |
| Charge Injection (typical) | 3.5 pC |
| Enable Turn‑On Time | 250 ns |
All Maxim MAX337 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the on‑resistance of the MAX336/MAX337?
The on‑resistance is specified as less than 400 Ω (max).
What supply voltages can the MAX336/MAX337 operate from?
They can run from a single +4.5 V to +30 V supply or from dual ±4.5 V to ±20 V supplies.
What supply voltage ranges can the MAX336/MAX337 operate from?
They operate from a single‑supply range of +4.5 V to +30 V or from dual supplies of +4.5 V to +20 V.
What is the typical off‑leakage current at room temperature?
The typical off‑leakage current is less than 20 pA at +25 °C.
