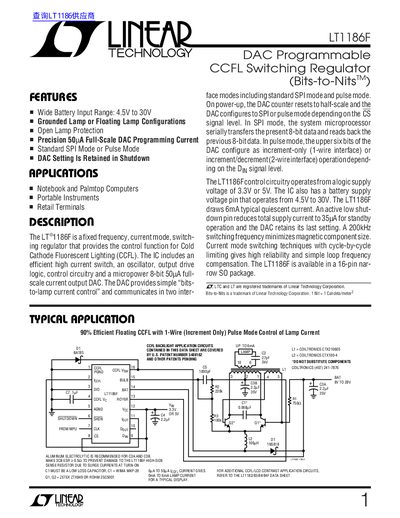

Linear Technology LT1186F CCFL Switching Regulator Datasheet
The LT1186F is a fixed frequency, current mode, switching regulator that provides control functions for Cold Cathode Fluorescent Lighting (CCFL). The IC includes an efficient high current switch, an oscillator, output drive logic, and a micropower 8-bit full-scale current output DAC. This device allows for simple 'bits-to-lamp current control' via Standard SPI Mode or Pulse Mode interfaces.
The regulator operates from a logic supply voltage of 3.3V or 5V and features a battery supply voltage pin operating from 4.5V to 30V. It utilizes a 200kHz switching frequency to minimize magnetic component size and includes open lamp protection, grounded or floating lamp configurations, and active low shutdown functionality.
Linear Technology LT1186F specifications
| Wide Battery Input Range | 4.5V to 30V |
|---|---|
| Switching Frequency | 200kHz typical |
| DAC Resolution | 8 Bits |
| Supply Current (Typical) | 6mA |
| Shutdown Supply Current | 35nA |
| Package Type | 16-pin narrow SO |
Source: Linear Technology LT1186F CCFL Switching Regulator Datasheet
All Linear Technology LT1186F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating logic supply voltages?
The control circuitry operates from a logic supply voltage of 3.3V or 5V.
From: Linear Technology LT1186F CCFL Switching Regulator Datasheet
What is the operating ambient temperature range for the LT1186F?
The operating ambient temperature range is 0°C to 100°C.
From: Linear Technology LT1186F CCFL Switching Regulator Datasheet
What is the input voltage range of the LT1186F?
The device operates from 4.5 V up to 30 V.
What is the typical quiescent current of the LT1186F?
It draws about 6 mA of quiescent current.
