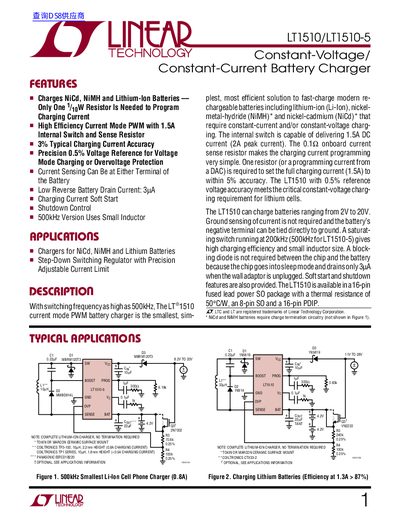

Linear Technology LT1510/LT1510-5 Datasheet
The LT1510 is a current mode PWM battery charger designed to charge Nickel-Cadmium (NiCd), Nickel-Metal-Hydride (NiMH), and Lithium-Ion batteries. It features high efficiency with an internal 1.5A switch and requires only one external resistor to program the charging current.
The device operates at switching frequencies up to 500kHz, allowing for small inductor sizes. Key features include a precision 0.5% voltage reference, low reverse battery drain of 3uA, soft start capability, and shutdown control. It is available in various packages including SO, PDIP, and SSOP.
Linear Technology LT1510 specifications
| Charging Current (Max) | 1.5A DC (2A peak) |
|---|---|
| Switching Frequency | Up to 500kHz |
| Battery Voltage Range | 2V to 20V |
| Reverse Battery Drain Current | 3uA |
| Reference Voltage Accuracy | 0.5% |
All Linear Technology LT1510 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What types of batteries can the LT1510 charge?
It charges NiCd, NiMH, and Lithium-Ion batteries.
How is the charging current programmed?
Only one external resistor is needed to program the charging current.
What battery types can the LT1510 charge?
In constant-current/constant-voltage mode, it charges Li-ion and SLA batteries; in constant-current only mode, it charges NiMH and NiCd batteries.
From: LINEAR AN68-1 handbook
What is the maximum input voltage for the LT1510?
The LT1510 can operate over a large range of input voltages up to 28V.
From: LINEAR AN68-1 handbook
