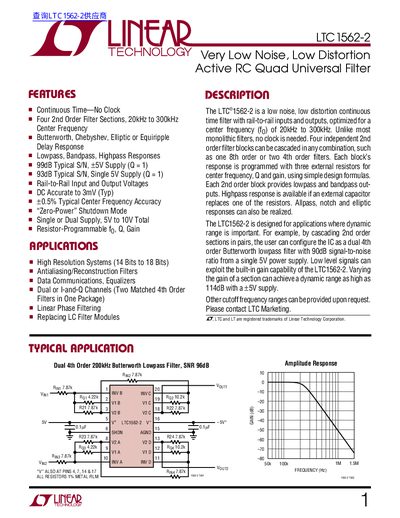

Linear Technology LTC1562-2 Datasheet
The LTC1562-2 is a very low noise, low distortion active RC quad universal filter designed for high resolution systems. It features four independent 2nd order filter sections that operate continuously without requiring an external clock signal. The device supports center frequencies ranging from 20kHz to 300kHz and allows users to configure Butterworth, Chebyshev, Elliptic, or Equiripple delay responses.
Read onlineLinear Technology LTC1562 specifications
| Center Frequency Range | 20kHz to 300kHz |
|---|---|
| Supply Voltage (Dual) | 5V to 10V Total |
| Shutdown Supply Current | 15 pA (to V+) |
| Output Voltage Swing (+5V) | 93 dB Typical S/N |
All Linear Technology LTC1562 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the LTC1562-2 require a clock signal?
No, it is a continuous time filter that does not need an external clock.
What filter responses are supported?
The device supports Butterworth, Chebyshev, Elliptic, or Equiripple delay responses.
Does the LTC1562 require a clock signal?
No, it is a continuous-time filter that requires no clock.
From: Linear Technology LTC1562 Active RC Quad Universal Filter Datasheet
What are the available response shapes?
The device supports Lowpass, Bandpass, and Highpass responses.
