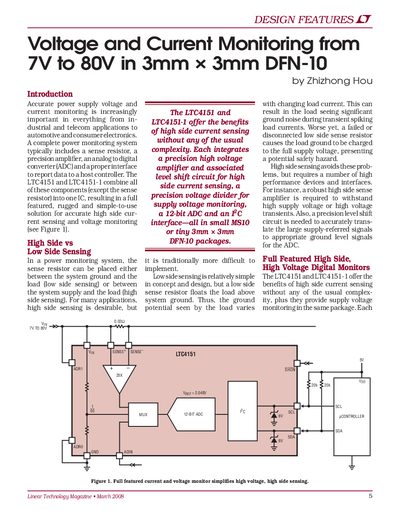

linear DESIGN FEATURES LTMag-V18N01-02-LTC4151-Z_Hou service manual
The LTC4151 and LTC4151-1 are fully featured, rugged solutions for accurate high-side current sensing and supply voltage monitoring. These devices combine a precision high-voltage amplifier, level shift circuit, voltage divider, 12-bit ADC, and I2C interface into a single IC available in MS10 or DFN-10 packages.
The chips support operation from 7V to 80V with absolute maximum ratings of 90V. They offer high accuracy over the industrial temperature range and can be configured for continuous scanning at 7.5Hz or snapshot mode. The LTC4151 includes a shutdown pin for power saving, while the LTC4151-1 features split SDA pins to facilitate simple optoisolation schemes.
Linear Technology LTC4151 specifications
| Supply Voltage Range | 7V to 80V |
|---|---|
| Absolute Maximum Voltage | 90V |
| ADC Resolution (Supply) | 25mV/LSB |
| ADC Resolution (ADIN) | 500uV/LSB |
| Refresh Frequency (Continuous) | 7.5Hz |
Source: linear DESIGN FEATURES LTMag-V18N01-02-LTC4151-Z_Hou service manual
All Linear Technology LTC4151 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can these monitors be used with high voltage supplies?
Yes, they can be directly connected to high voltage supplies without a secondary supply due to their wide input range.
From: linear DESIGN FEATURES LTMag-V18N01-02-LTC4151-Z_Hou service manual
How many I2C addresses can be configured?
The parts can be configured with one of nine I2C addresses via the ADR1 and ADRO pins.
From: linear DESIGN FEATURES LTMag-V18N01-02-LTC4151-Z_Hou service manual
What is the operating voltage range of the LTC4151?
The device operates with an input voltage ranging from 7V to 80V.
From: Linear Technology LTC4151 Power Monitor Datasheet Design Note 452
What resolution does the internal ADC of the LTC4151 provide?
The device includes a 12-bit ADC for measuring current, voltage, and auxiliary input.
From: Linear Technology LTC4151 Power Monitor Datasheet Design Note 452
